Product Summary
Catalog Drawings |

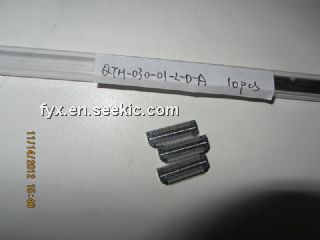

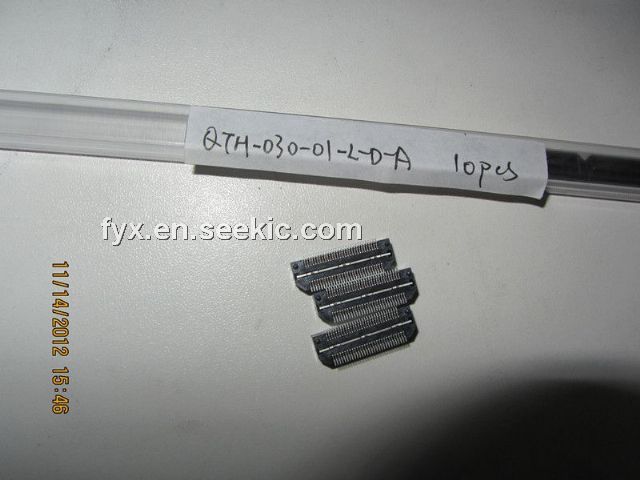

QTH Series Header |
---|---|
Featured Product |
Q Strip? High Speed Mezzanine |
Standard Package | 1 |
Category | Connectors, Interconnects |
Family | Board to Board - Arrays, Edge Type, Mezzanine |
Series | QStrip? QTH |
Connector Type | Header, Outer Shroud Contacts |
Number of Positions | 60 |
Pitch | 0.020" (0.50mm) |
Number of Rows | 2 |
Mounting Type | Surface Mount |
Features | Board Guide, Ground Bus (Plane) |
Contact Finish | Gold |
Contact Finish Thickness | 10μin (0.25μm) |
Packaging | Tray |
Mated Stacking Heights | 5mm |
Height Above Board | 0.168" (4.27mm) |
Dynamic Catalog | QStrip? Series |
Parametrics
Number of Positions :60
Pitch :0.020" (0.50mm)
Number of Rows :2
Mounting Type :Surface Mount
Features :Board Guide, Ground Bus (Plane)
Contact Finish :Gold
Contact Finish Thickness: 10μin (0.25μm)
Features
- Extended Life Product (ELP)
- Surface Mount
- Available up to 90 Pins Per Row
- Double Row
- Gold Plating
