Product Summary
The ADEX-10L+ is a frequency mixer. The applications of the device include cellular and PCN.
Parametrics
ADEX-10L+ absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power: 50mW; (4)IF Current: 40mA.
Features
ADEX-10L+ features: (1)excellent L-R isolation, 60 dB typ; (2)low conversion loss, 7.2 dB typ; (3)flat conversion loss ±0.2 dB typ. over entire band; (4)good VSWR, 1.5:1 typ. for LO & RF, 1.8:1 Typ. for IF; (5)good performance to 1500 MHz; (6)aqueous washable; (7)protected by U.S. Patents 6,133,525 & 6,947,717.

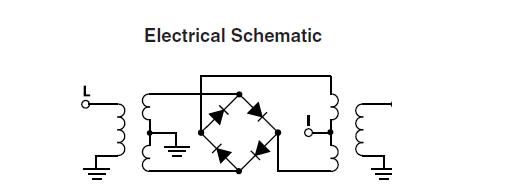

Diagrams
 |
 ADEX-10L |
Other |
|
Data Sheet |
Negotiable |
|
||||
