Product Summary

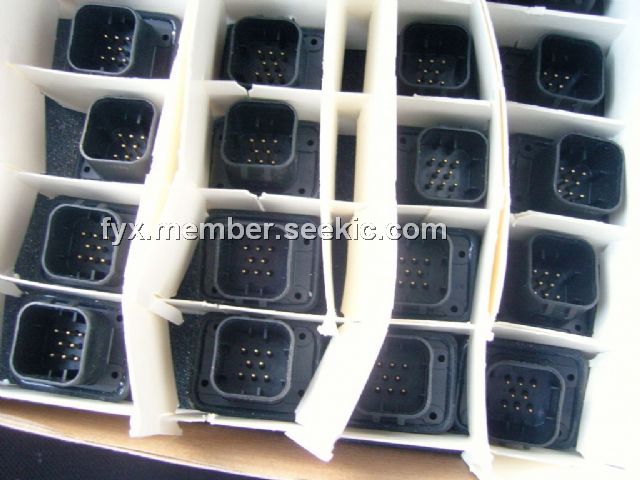

The 1-776276-1 is a Connector.

Parametrics

1-776276-1 specifications: (1)Vendor: TE Connectivity ; (2)Category: Connectors, Interconnects; (3)Color: Black; (4)Connector Type: Header, Shrouded; (5)Contact Finish: Gold-Palladium; (6)Mounting Type Panel Mount; Through Hole; (7)Number of Positions Loaded All; (8)Number of Row:s 3; (9)Pitch: 0.157" (4.00mm); (10)Row Spacing: 0.157" (4.00mm); (11)Packaging: Bulk; (12)Fastening Type: Locking Ramp; (13)Termination: Solder; (14)Number of Positions: 8; (15)Contact Type: Male Pin; (16)Lead Free Status: Lead Free; (17)RoHS Status RoHS Compliant.

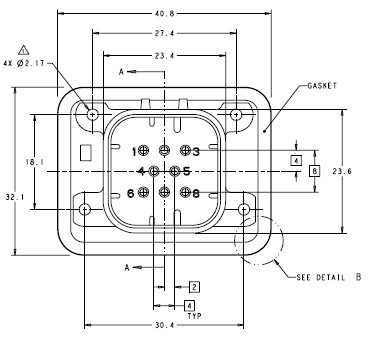

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1-776276-1
1-776276-1

TE Connectivity

Automotive Connectors 8 POS VERTICAL HDR

Data Sheet

0-1: $5.12
1-25: $4.54
25-50: $4.14
50-100: $3.76
