Product Summary
The BAV70W is a dual surface mount switching diode.
Parametrics
BAV70W absolute maximum ratings: (1)Non-Repetitive Peak Reverse Voltage: 100 V; (2)Peak Repetitive Reverse Voltage, Working Peak Reverse Voltage, DC Blocking Voltage: 75 V; (3)RMS Reverse Voltage: 53 V; (4)Forward Continuous Current: 300 mA; (5)Average Rectified Output Current: 150 mA; (6)Non-Repetitive Peak Forward Surge Current @ t = 1.0μs: 2.0 A, @ t = 1.0s IFSM: 1.0 A; (7)Power Dissipation: 200 mW; (8)Thermal Resistance Junction to Ambient Air: 625 ℃/W; (9)Operating and Storage Temperature Range: -65 to +150 ℃.
Features
BAV70W features: (1)Fast Switching Speed; (2)Ultra-Small Surface Mount Package; (3)For General Purpose Switching Applications; (4)High Conductance.

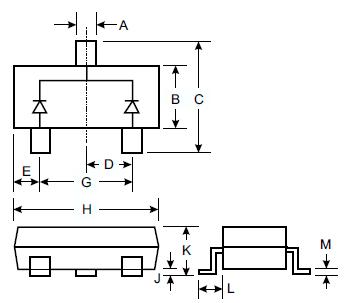

Diagrams
