Product Summary
The BLM18PG221SN1D is EMIFIL (Inductor type) chip ferrite bead, the package is SMD 0603.
Parametrics
Characteristics: (1)Global Part Number: BLM18PG221SN1D; (2)Length: 1.6mm; (3)Width: 0.8mm; (4)Thickness: 0.8mm; (5)Size Code (in mm): 1608; (6)Size Code (in inch): 0603; (7)Mass (Typ.): 0.005g; (8)Rated Current: 1400mA; (9)Number of Circuits: 1; (10)DC Resistance: 0.10ohm max; (11)Impedance (at 100MHz/20 degree C): 220ohm ±25%; (12)Operating Temperature Range: -55 to +125℃.
Features
Specifications: (1)Number of Pins: 2; (2)Current Rating: 1.40A; (3)Resistance: 100 mΩ; (4)Operating Temperature: -55.0℃ to 125℃; (5)Case / Package: 0603; (6)Lead-Free Status: Lead Free; (7)Mounting Type: Surface Mount; (8)Packaging: Reel; (9)RoHS: Compliant.

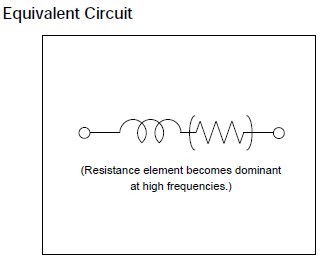

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLM18PG221SN1D |
Murata |
EMI Filter Beads, Chokes & Arrays 220ohms |
Data Sheet |
|
|
||||||||||||
