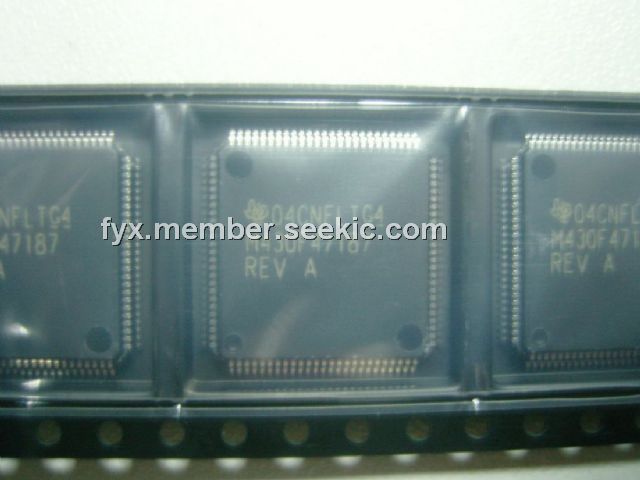

Product Summary
The Texas Instruments MSP430F47187IPZR family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portablemeasurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6s. The MSP430F47187IPZR is microcontroller configurations targeted to single-phase and poly-phase electricity meters with three, six, or seven 16-bit sigma-delta A/D converters. Each channel has a differential input pair and programmable input gain. Also integrated are two 16-bit timers, four universal serial communication interfaces (USCI), DMA, 68 I/O pins, and a liquid crystal driver (LCD) with integrated contrast control.
Parametrics
Absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3V to 4.1V; (2)Voltage applied to any pin: -0.3V to VCC+0.3V; (3)Diode current at any device terminal: 2mA; (4)Storage temperature, Tstg: Unprogrammed device: -55℃ to 150℃; (5)Programmed device: -40℃ to 85℃.
Features
Features: (1)Low Supply-Voltage Range: 1.8V to 3.6V; (2)Ultralow Power Consumption; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in Less Than 6s; (5)16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time; (6)Three-Channel Internal DMA; (7)Three, Six or Seven 16-Bit Sigma-Delta Analog-to-Digital (A/D) Converters With Differential PGA Inputs; (8)16-Bit Timer_B With Three Capture/Compare-With-Shadow Registers; (9)16-Bit Timer_A With Three Capture/Compare Registers; (10)On-Chip Comparator; (11)Integrated LCD Driver With Contrast Control for Up to 160 Segments; (12)Basic Timer With Real-Time Clock Feature; (13)32-Bit Hardware Multiplier; (14)Brownout Detector; (15)Supply Voltage Supervisor/Monitor With Programmable Level Detection.

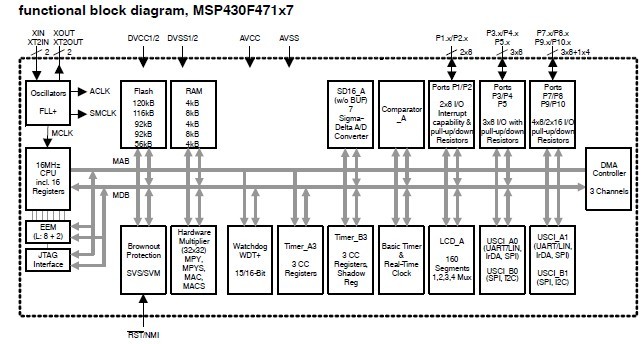

Diagrams
