Product Summary
The TUSB2046BVFR is designed as one kind of 3.3-V CMOS hub device that provides one upstream port and four downstream ports in compliance with the 1.1 Universal Serial Bus (USB) specification. And this device provides the flexibility of using a 6-MHz or a 48-MHz clock. The logic level of the TSTMODE terminal controls the selection of the clock source. When TSTMODE is low, the output of the internal APLL circuitry is selected to drive the internal core of the device. When TSTMODE is high, the TSTPLL/48MCLK input is selected as the input clock source and the APLL circuitry is powered down and bypassed.
Parametrics
Absolute maximum ratingS: (1)Supply voltage range, Vcc: -0.5 V to 3.6 V;(2)Input voltage range: -0.5 V to VCC+0.5 V;(3)Output voltage range: -0.5 V to VCC+0.5 V;(4)Input clamp current, IIK: ±20 mA;(5)Output clamp current, IOK: ±20 mA;(6)Storage temperature range: -65°C to 150°C;(7)Operating free-air temperature range: 0°C to 70°C.
Features
Features:(1)Universal Serial Bus (USB) Version 1.1 Compliant; (2)32-Terminal LQFP?Package With a 0.8-mm Terminal Pitch; (3)3.3-V Low Power ASIC Logic; (4)Integrated USB Transceivers; (5)State Machine Implementation Requires No Firmware Programming; (6)One Upstream Port and Four Downstream Ports; (7)All Downstream Ports Support Full-Speed and Low-Speed Operations; (8)Power Switching and Overcurrent Reporting Is Provided Ganged or Per Port; (9)Supports Suspend and Resume Operations; (10)Supports Programmable Vendor ID and Product ID With External Serial EEPROM; (11)3-State EEPROM Interface Allows EEPROM Sharing; (12)Package Pinout Allows 2-Layer PCB; (13)Low EMI Emission Achieved by a 6-MHz Crystal Input; (14)Migrated From Proven TUSB2040 Hub; (15)Lower Cost Than the TUSB2040 Hub; (16)Enhanced System ESD Performance.

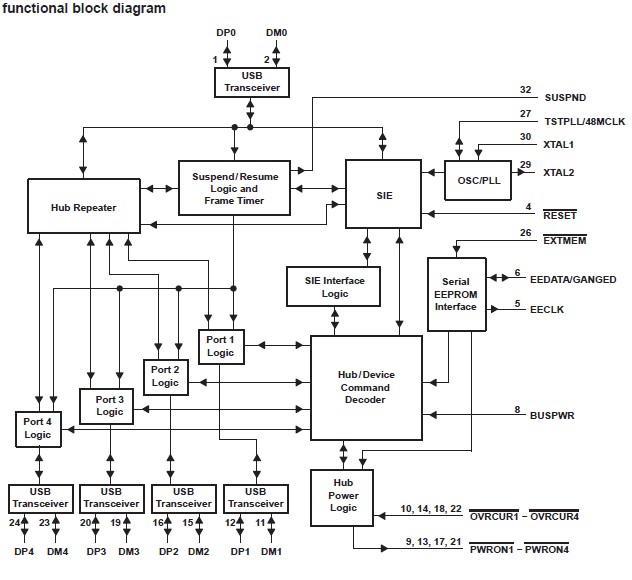

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TUSB2046BVFR |
Texas Instruments |
USB Interface IC 4port Hub |
Data Sheet |
|
|
||||||||||||
|
TUSB2046BVFRG4 |
Texas Instruments |
USB Interface IC 4-Port Full-Speed Hub |
Data Sheet |
|
|
||||||||||||
