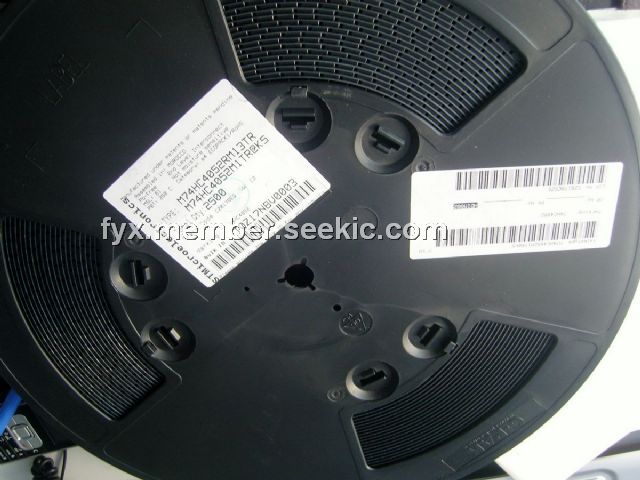

M74HC4052RM13TR

74HC Series CMOS, Dual 4 Channel, Analog Multiplexer / Demultiplexer, SOIC-16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~2.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~2.56

PartNumber:: M74HC4052RM13TR

Brand:: STMicroelectronics - ST | Pack: SOIC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-31

From Other Seller

Part Number:M74HC4052RM13TR
US $1.10 - 2.56
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The M74HC4052RM13TR is a dual four-channel analog multiplexer/ demultiplexer fabricated with silicon gate C2MOS technology and it is pin to pin compatible with the equivalent metal gate CMOS4000B series.All inputs are equipped with protection circuits against static discharge and transient excess voltage.

Parametrics

Absolute maximum ratings:(1)VCC,the parameter is supply voltage,the value -0.5 to +7V;(2)VCC-VEE,the parameter is supply voltage,the value -0.5 to +13V;(3)VI,the parameter is DC input voltage,the value -0.5 to VCC + 0.5V;(4)VI/O,the parameter is switch I/O voltage,the value VEE-0.5 to VCC + 0.5V;(5)ICK,the parameter is control input diode current,the value ±20mA;(6)IOK,the parameter is I/O diode current,the value ±20mA;(7)IT,the parameter is switch through current,the value ±25mA;(8)ICC or IGND,the parameter is DC VCC or ground current,the value ±50mA;(9)PD,the parameter is power dissipation,the value 500mW;(10)Tstg,the parameter is storage temperature,the value -65 to +150℃;(11)TL,the parameter is lead temperature(10 sec),the value 300℃.

Features

Features:(1)low power dissipation: ICC = 4mA(MAX.) at TA=25℃; (2)logic level translation to enable 5V logic signal to communicate with ±5V analog signal; (3)low on resistance: 70W TYP. (VCC - VEE = 4.5V), 50W TYP. (VCC - VEE = 9V); (4)wide analog input voltage range: ±6V; (5)fast switching: tpd = 15ns (TYP.) at TA = 25 ℃; (6)low crosstalk between switches; (7)high ON/OFF output voltage ratiO; (8)wide operating supply voltage range (VCC - VEE) = 2V to 12V; (9)low sine wave distortion: 0.02% at VCC - VEE = 9V; (10)high noise immunity: VNIH = VNIL = 28 % VCC (MIN.); (11)pin and function compatible with 74 series 4052.
