Product Summary

The 78st305hc is a wide input voltage, 3 terminal Integrated Switching Regulator (ISR). Employing a ceramic substrate, the 78st305hc has a maximum output current of 3A. The output voltage is laser trimmed for high accuracy. The 78st305hc regulator has internal short-circuit and overtemperature protection and may be used in a wide variety of applications.

Parametrics

78st305hc absolute maximum ratings: (1)Output Current: 0.1* to 3.0 A; (2)Input Voltage Range: 8 to 20 V; (3)Output Voltage Tolerance: ±1.0 to ±2.0 %Vo; (4)Line Regulation: ±0.4 to ±0.8 %Vo; (5)Load Regulation: ±0.2 to ±0.4 %Vo; (6)Ripple/Noise: 1 %Vo; (7)Transient Response (with 100μF output cap: 5.0 %Vo; (8)Efficiency: 80 %; (9)Switching Frequency: 0.95 to 1.05 MHz; (10)Absolute Maximum: -40 to +70 ℃; (11)Operating Temperature Range:; (12)Recommended Operating: -40 to +70 ℃; (13)Thermal Resistance: 35 ℃/W; (14)Storage Temperature: -40 to +125 ℃; (15)Mechanical Shock: 500 G’s; (16)Mechanical Vibration: 10 G’s.

Features

78st305hc features: (1)High Efficiency > 80%; (2)Wide Input Range; (3)Self-Contained Inductor; (4)Short-Circuit Protection; (5)Over-Temperature Protection; (6)Fast Transient Response.

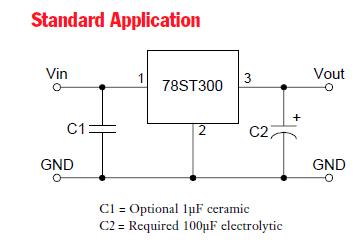

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

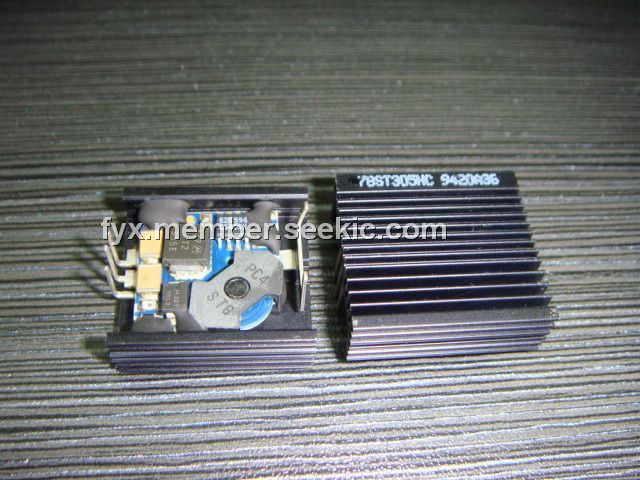

78ST305HC
78ST305HC

Texas Instruments

DC/DC Converters 5Vout 3A Wide Input Adj Step-Down ISR

Data Sheet

0-1: $20.23
1-25: $18.20
25-100: $17.36
100-250: $16.38
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
78ST100
78ST100

Other


Data Sheet

Negotiable
78ST105
78ST105

Other


Data Sheet

Negotiable
78ST105HC
78ST105HC

Texas Instruments

DC/DC Converters Positive Step-Down ISR

Data Sheet

0-1: $16.38
1-25: $13.92
25-100: $12.92
100-250: $11.87
78ST105SC
78ST105SC

Texas Instruments

DC/DC Converters 5Vout 1.5A Wide Inp Pos Step-Down ISR

Data Sheet

0-1: $15.32
1-25: $13.26
25-100: $12.42
100-250: $11.60
78ST105VC
78ST105VC

Texas Instruments

DC/DC Converters 5Vout 1.5A Wide Inp Pos Step-Down ISR

Data Sheet

0-1: $16.38
1-25: $13.92
25-100: $12.92
100-250: $11.87
78ST106HC
78ST106HC


REGULATOR 6.00V HORIZONTAL

Data Sheet

Negotiable
