Product Summary

The DSP1-DC24V-F is a 8 A miniature power relay. It is used in office and industrial electronic, devices; terminal devices of information; processing equipment, such as printer, data recorder; office equipment (copier, facsimile); measuring instruments; nc machines, temperature controllers and programmable logic controllers, etc.

Parametrics

Parameters: (1)Circuit: DPST-NO/NC (1 Form A and B); (2)Category: Relays; (3)Family: Power, Over 2 Amps @ 30 VDC; (4)Series: DSP; (5)Mounting Type: Through Hole; (6)Termination Style: PC Pin; (7)Contact Rating @ Voltage: 5A @ 250VAC; (8)Relay Type: General purpose; (9)Coil Type: Standard ; (10)Coil Current: 12.5mA; (11)Coil Voltage: 24VDC; (12)Control On Voltage (Max): 19.2 VDC; (13)Control Off Voltage (Min): 2.4 VDC.

Features

Features: (1)Compact with high contact rating; (2)High switching capability; (3)High sensitivity; (4)High breakdown voltage; (5)Latching types available; (6)Wide variation; (7)Sealed construction allows automatic washing; (8)Complies with safety standards.

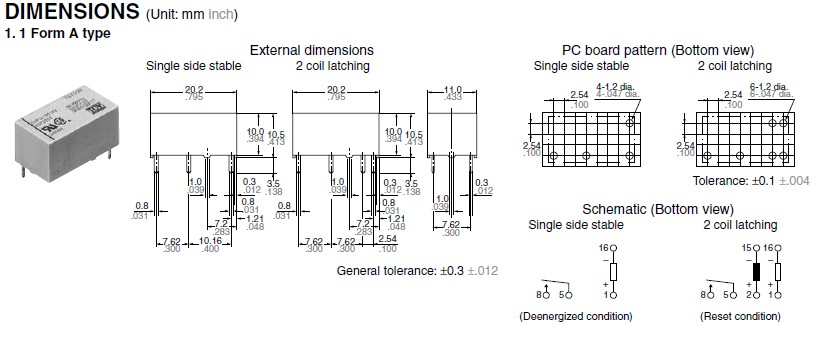

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

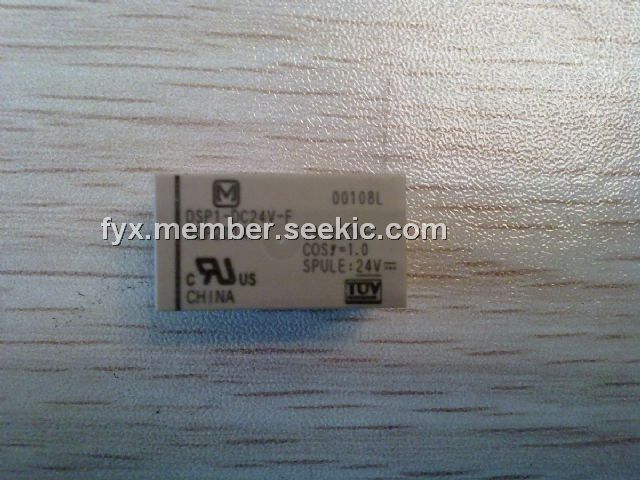

DSP1-DC24V-F
DSP1-DC24V-F

Panasonic Electric Works

General Purpose / Industrial Relays 8A 24V 1FORMA/1FORMB NON-LATCHING PCB

Data Sheet

0-1: $5.60
1-25: $5.27
25-50: $4.74
50-100: $4.21
