Product Summary
The FF300R12KT3 is a 62mm C-series module with fast trench/fieldstop IGBT3 and EmCon High Efficiency diode. It is widely used in DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control, light dimmers,Welders and so on. Its collector emitter voltage is 1200 V at Tvj=25 ℃.
Parametrics
Maximum rated values: (1)collector emitter voltage, VCES: 1200 V at Tvj=25 ℃; (2)DC collector current: Icnom=300A at Tc=80 ℃, Tvj=150 ℃; Ic=480 A at Tc= 25 ℃, Tvj=150 ℃;(3)repetitive peak collector current, ICRM: 600 A at tp=1ms; (4)total power dissipation, Ptot: 1450 W at Tc= 25 ℃, Tvj=150 ℃;(5)gate emitter peak voltage, VGES: +/- 20 V.
Features
Features: (1)IGBT Modules up to 1200V; (2)Package: AG-62MM-1; (3)IC(max): 300.0 A; (4)VCE(sat)(typ): 1.7 V; (5)Configuration: Dual Modules; (6)Technology: IGBT3 Fast; (7)Housing: 62 mm.

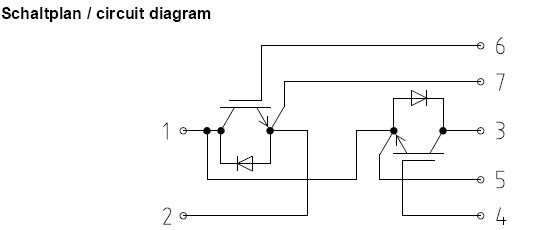

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FF300R12KT3 |
Infineon Technologies |
IGBT Modules 1200V 300A DUAL |
Data Sheet |
|
|
|||||||||
FF300R12KT3_E |
Infineon Technologies |
IGBT Modules IGBT 1200V 300A |
Data Sheet |
|
|
