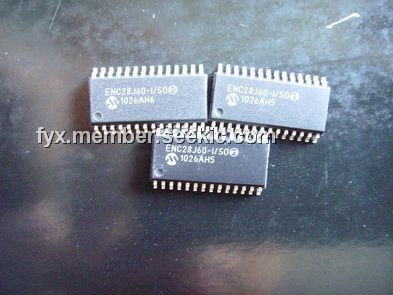

ENC28J60-ISO

ETHERNET CONTROLLER W/SPI, 28SOIC, IEEE 802.3 compatible, clock speeds up to 20 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.43~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.43~0.80

PartNumber:: ENC28J60-ISO

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-31

From Other Seller

Part Number:ENC28J60-ISO
US $0.43 - 0.80
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ENC28J60-ISO is a stand-alone Ethernet controller with an industry standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI. The ENC28J60-ISO meets all of the IEEE 802.3 specifications. It incorporates a number of packet filtering schemes to limit incoming packets. ENC28J60-ISO also provides an internal DMA module for fast data throughput and hardware assisted checksum calculation, which is used in various network protocols. Communication with the host controller is implemented via an interrupt pin and the SPI, with clock rates of up to 20 MHz. Two dedicated pins are used for LED link and network activity indication.

Parametrics

ENC28J60-ISO absolute maximum ratings: (1)Storage temperature: -65℃ to +150℃; (2)Ambient temperature under bias: -40℃ to +85℃ (Industrial); 0℃ to +70℃ (Commercial); (3)Voltage on VDD, VDDOSC, VDDPLL, VDDRX, and VDDTX, with respect to VSS: -0.3V to 3.6V; (4)Voltage on RESET, CS, SCK and SI, with respect to VSS: -0.3V to 6.0V; (5)Voltage on CLKOUT, SO, OSC1, OSC2, LEDA and LEDB, with respect to VSS: -0.3V to VDD + 0.3V; (6)Voltage on TPIN+/- and TPOUT+/- with respect to VSS: -0.3V to 5.0V; (7)VCAP with respect to VSS (Note 1): -0.3V to 2.75V; (8)ESD protection on all pins: 2 kV; (9)Current sourced or sunk by LEDA, LEDB: 12 mA; (10)Current sourced or sunk by CLKOUT: 8 mA; (11)Current sourced or sunk by INT and SO: 4 mA.

Features

ENC28J60-ISO features: (1)IEEE 802.3 compatible Ethernet controller; (2)Integrated MAC and 10BASE-T PHY; (3)Supports one 10BASE-T port with automatic polarity detection and correction; (4)Supports Full and Half-Duplex modes; (5)Programmable automatic retransmit on collision; (6)Programmable padding and CRC generation; (7)Programmable automatic rejection of erroneous packets; (8)SPI Interface with clock speeds up to 20 MHz.
