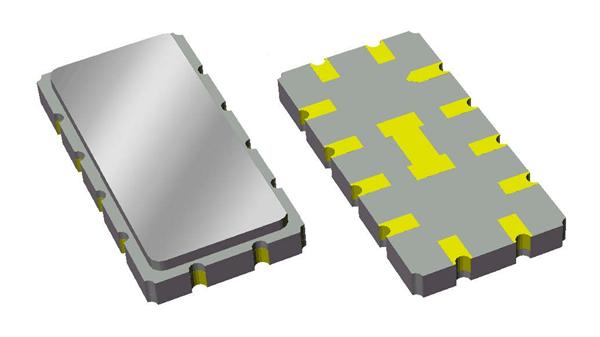

Product Summary

The 854659 is a 70 MHz Low-Loss Filter with 4.5 MHz Bandwidth.

Parametrics

854659 specifications: (1)Center Frequency: 69.85 to 70.15 MHz; (2)Insertion Loss at Fo: 6.8 dB typ; (3)1 dB Bandwidth: 3.8 MHz min and 4.2 MHz typ; (4)3 dB Bandwidth: 4.5 MHz min and 4.9 MHz typ; (5)35 dB Bandwidth: 8.5 MHz typ; (6)Passband Ripple: 0.6 dB typ; (7)Phase Linearity (70% of 3dB Bandwidth): 4.5 deg typ; (8)Group Delay Variation (70% of 3dB Bandwidth): 115 nsec typ; (9)Absolute Delay: 0.95 μsec typ; (10)Temperature Coefficient: -94 ppm/℃ typ; (11)Ambient Temperature: 25 ℃ typ.

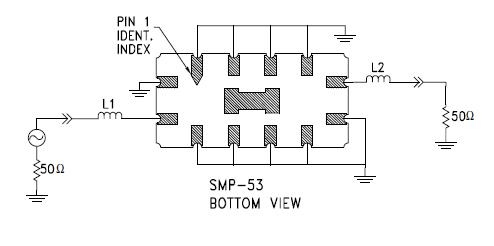

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
854659
854659

TriQuint Semiconductor

Signal Conditioning 70MHz BW 4.5MHz Filter

Data Sheet

0-1: $23.78
1-25: $21.02
25-100: $18.57
100-250: $15.79
