Product Summary

The LPT46 is a Embedded Power supply for Business-Critical Continuity.

Parametrics

LPT46 absolute maximum ratings: (1)Input range: 85-264 VAC; 120-300 VDC; (2)Frequency: 47-440 Hz; (3)Inrush current: < 18A peak @ 115 VAC; < 36A peak @ 230 VAC, cold start @ 25 ℃; (4)Input current: 1A max. (RMS) @ 115VAC; (5)Efficiency: 70% typical at full load (60% for LPT41); (6)Safety ground: < 75 μA @ 50/60 Hz, 264 VAC input; (7)Maximum Power: 40W for convection; 55W with 30CFM forced air; (8)Cross regulation: ±2% on output 1; ±5% on outputs 2, 3; (9)Adjustment range: -5, +10% minimum; (10)Hold-up time: 20ms @ 40W load, 115 VAC nominal line; (11)Overload protection: Short circuit protection on all outputs. Case overload protected @ 110% to 145% above peak rating; (12)Overvoltage protection: 5.7 to 6.7 VDC on the main output.

Features

LPT46 features: (1)Universal input; (2)3 x 5footprint; (3)Less than 1U high; (4)Remote sense on main output; (5)Built-in EMI filter; (6)Low output ripple; (7)Adjustable 5V output; (8)Overvoltage protection; (9)Overload protection; (10)110 KHz switching frequency; (11)LPX40 enclosure kit available.

Diagrams

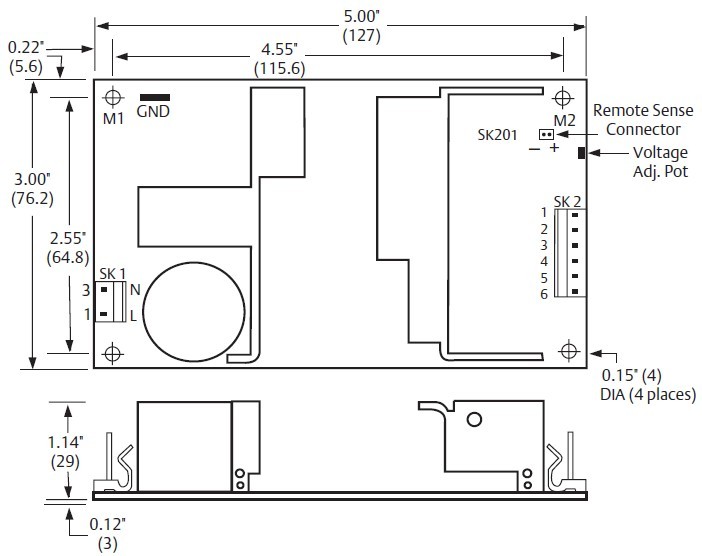

LPT46 Mechanical Drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LPT46
LPT46


PWR SUPPLY 40W 5/24/12VOUT TRPL

Data Sheet

0-1: $30.68
1-10: $28.49
10-50: $27.18
50-100: $25.42
100-250: $23.32
