Product Summary

The ADE-30+ is a Level 7 (LO Power +7 dBm), 200 to 3000 MHz Surface Mount Frequency Mixer.

Parametrics

ADE-30+ absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power: 50mW; (4)IF Current: 40mA.

Features

ADE-30+ features: (1)low conversion loss, 4.5 dB typ.; (2)excellent L-R isolation, 35 dB typ.; (3)low profile package; (4)aqueous washable; (5)protected by U.S. Patent 6,133,525.

Diagrams

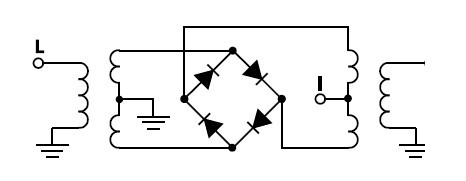

ADE-30+ Electrical Schematic
