Product Summary

The G5V-2 24V is a standard low signal relay with 24VDC of related coil voltage. As miniature relay for signal circuits, it is suitable for handling low signals in computer peripherals, telecommunications and security equipment. Using the Relay in a circuit where the Relay will be ON continuously for long periods (without switching) can lead to unstable contacts because the heat generated by the coil itself will affect the insulation, causing a film to develop on the contact surfaces. Be sure to use a fail-safe circuit design that provides protection against contact failure or coil burnout.

Parametrics

Absolute maximum ratings:(1)Contact resistance: 50mΩ max; (2)Operate time: 7 ms max; (3)Release time: 3 ms max; (4)Operating frequency (max.) of Mechanical: 36,000 operations/hour; (5)Operating frequency (max.) of Electrical: 1,800 operations/hour; (6)Insulation resistance: 1,000MΩ min (at 500 VDC); (7)Dielectric strength: 1,000 VAC, 50/60 Hz for 1 minute between coil and contacts; (8)Surge withstand voltage: 1,500 V (10 X 160 μs) between coil and contacts.

Features

Features:(1)Miniature Relay for Signal Circuits; (2)Suitable for handling low signals in computer peripherals, telecommunications and security equipment; (3)Capable of switching loads 10μA to 2 A; (4)Conforms to FCC part 68 1,500 V surge withstand; (5)Reliable Ag + Au-clad, bifurcated crossbar contacts; (6)Fully-sealed construction; (7)RoHS Compliant.

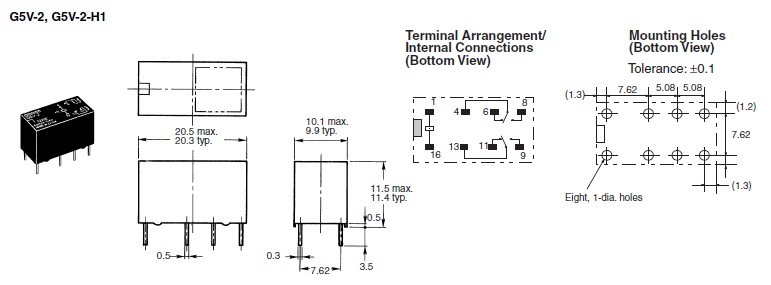

Diagrams

G5V-1-2 DC12
G5V-1-2 DC12

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 12DC 150mW Seal

Data Sheet

0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC24
G5V-1-2 DC24

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 24DC 150mW Seal

Data Sheet

0-1: $1.25
1-25: $1.16
25-50: $1.04
50-100: $0.94
G5V-1-2 DC5
G5V-1-2 DC5

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 5DC 150mW Seal

Data Sheet

0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC6
G5V-1-2 DC6

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 6DC 150mW Seal

Data Sheet

0-1: $0.98
1-25: $0.91
25-50: $0.85
50-100: $0.78
G5V-1-2 DC9
G5V-1-2 DC9

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 9DC 150mW Seal

Data Sheet

0-1: $1.07
1-25: $0.99
25-50: $0.92
50-100: $0.85
G5V-1-2-DC3
G5V-1-2-DC3


RELAY GENERAL PURPOSE SPDT 1A 3V

Data Sheet

Negotiable
