Product Summary

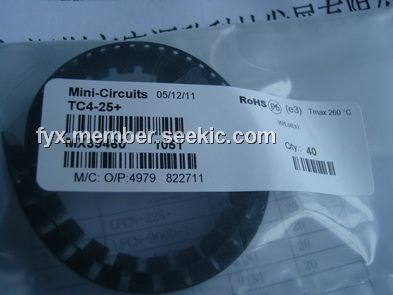

The TC4-25+ is a Surface Mount RF Transformer. The applications of TC4-25+ are: PCS and cellular.

Parametrics

TC4-25+ absolute maximum ratings: (1)Operating Temperature: -20℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power: 0.25 W; (4)DC Current: 30 mA.

Features

TC4-25+ features: (1)wideband, 500-2500 MHz; (2)balanced transmission line with secondary center tap; (3)good return loss; (4)plastic base with leads; (5)aqueous washable.

Diagrams

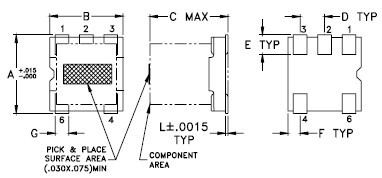

TC4-25+ Outline Drawing
