Product Summary

The Power-One’s MAP80-4001 power supply provides reliable, tightly regulated DC power for commercial and industrial systems which require high peak current capabilities. Wide-range AC input and full international safety, EMI, and ESD compliance ensure world-wide acceptance. All units bear the CE Mark. The MAP80-4001 utilizes a variable frequency design with a thermally efficient U-channel chassis to provide full power operation in convection cooled applications. Design innovations include metric and SAE mounting inserts on each mounting surface to provide integration flexibility. Dual-mode connectors provide traditional terminal block connections or popular single row Molex connector mating.

Parametrics

MAP80-4001 absolute maximum ratings: (1)Input Voltage - AC: 90 to 135 VAC at Continuous input range; (2)Input Frequency: 47 to 63 Hz at AC input; (3)Brown Out Protection: 90 VAC; (4)Hold-up Time: 20 mS at Nominal AC input voltage (115VAC), full rated load; (5)Input Current: 2.5 ARMS at 90 VAC (80W load), 2.8 ARMS at 110VAC (80W load); (6)Inrush Surge Current: 45 APK at Internally limited by thermistor. Vin = 264VAC (one cycle). 25℃; (7)Operating Frequency: 22 to 120 kHz at Switching frequency of power supply (varies with load).

Features

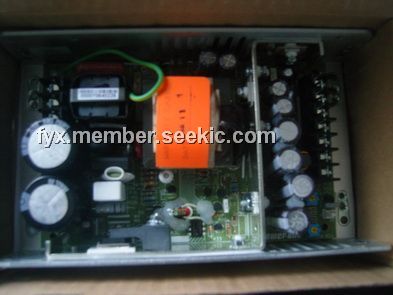

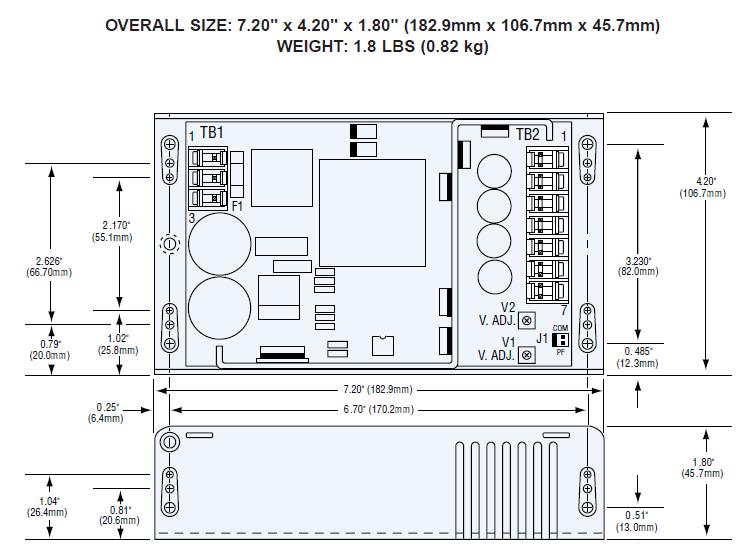

MAP80-4001 features: (1)Wide Range Input for 110/220 VAC Applications; (2)CE Marked to Low Voltage Directive; (3)Input Transient & ESD Compliance to EN61000-4-2/-3/-4; (4)Meets EN55022, Class B Limits; (5)TTL Compatible Power Fail Signal; (6)Compact Footprint: 7.20" x 4.20" x 1.80" (182.9mm x 106.7mm x 45.7mm); (7)Greater than 175,000 Hours MTBF; (8)Metric and SAE Mounting Inserts.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAP80-4001
MAP80-4001

Power-One

Linear and Switching Power Supplies 80W 5V 14A 24V 2A/ -12V 1A

Data Sheet

0-1: $147.59
1-5: $141.64
5-10: $138.52
10-25: $132.10
