Product Summary

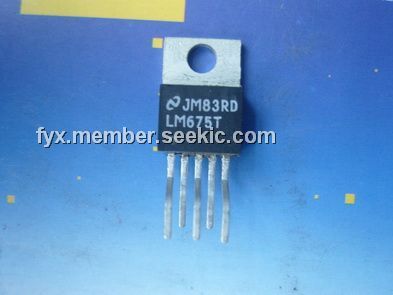

The LM675T is a monolithic power operational amplifier featuring wide bandwidth and low input offset voltage, making it equally suitable for AC and DC applications. The LM675T is capable of delivering output currents in excess of 3 amps, operating at supply voltages of up to 60V. The device overload protection consists of both internal current limiting and thermal shutdown. The LM675T is also internally compensated for gains of 10 or greater. The applications of the LM675T include High performance power op amp, Bridge amplifiers, Motor speed controls, Servo amplifiers, Instrument systems.

Parametrics

LM675T absolute maximum ratings: (1)Supply Voltage: ±30V; (2)Input Voltage: -VEE to VCC; (3)Operating Temperature: 0℃ to +70℃; (4)Storage Temperature: -65℃ to +150℃; (5)Junction Temperature: 150℃; (6)Power Dissipation: 30W; (7)Lead Temperature (Soldering, 10 seconds): 260℃; (8)ESD rating to be determined.

Features

LM675T features: (1)3A current capability; (2)AVO typically 90 dB; (3)5.5 MHz gain bandwidth product; (4)8 V/μs slew rate; (5)Wide power bandwidth 70 kHz; (6)1 mV typical offset voltage; (7)Short circuit protection; (8)Thermal protection with parole circuit (100% tested); (9)16V–60V supply range; (10)Wide common mode range; (11)Internal output protection diodes; (12)90 dB ripple rejection; (13)Plastic power package TO-220.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM675T
LM675T

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-135: $2.15
135-270: $1.94
270-540: $1.75
540-1035: $1.40
LM675T/LB03
LM675T/LB03

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-135: $2.87
135-270: $2.59
270-540: $2.32
540-1035: $1.96
LM675T/LF02
LM675T/LF02

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-135: $2.15
135-270: $1.94
270-540: $1.75
540-1035: $1.40
LM675T/LF03
LM675T/LF03

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-135: $2.87
135-270: $2.59
270-540: $2.32
540-1035: $1.96
LM675T/LF05
LM675T/LF05

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-135: $2.15
135-270: $1.94
270-540: $1.75
540-1035: $1.40
LM675T/NOPB
LM675T/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps Pwr Op Amp

Data Sheet

0-1: $2.94
1-25: $2.36
25-100: $2.15
100-250: $1.94
