Product Summary

The GH04P21A2GE is a TECHNICAL LITERATURE FOR LASER DIODE.

Parametrics

GH04P21A2GE absolute maxiamum ratings: (1)Optical power output(CW): 105 mW; (2)Optical power output(Pulse): 210mW; (3)Reverse voltage: 2V; (4)Operatings temperature: -10 to +70℃; (5)Storage temperature: -40 to +85℃; (6)Soldering temperature: 300℃.

Features

GH04P21A2GE features: (1)Threshold current Ith: 40 mA; (2)Operating current Iop: 110 mA; (3)Operating voltage Vop: 5.4 to 6.5V; (4)Wavelength: 400 to 415nm; (5)Differential efficiecy: 1.1 to 1.5 mW/mA; (6)Kink: 10%.

Diagrams

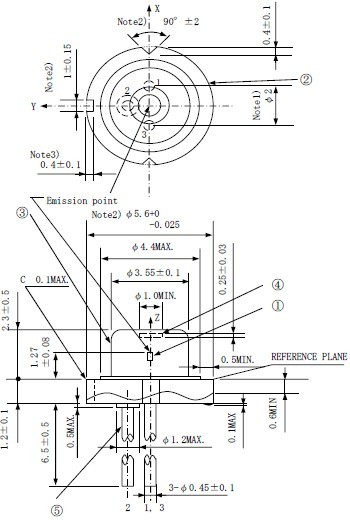

GH04P21A2GE Outline dimensions and Terminal connections

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
GH04P21A2GE
GH04P21A2GE

Sharp Microelectronics

Laser Diodes Blue Laser Diode 210 mW

Data Sheet

Negotiable
