Product Summary

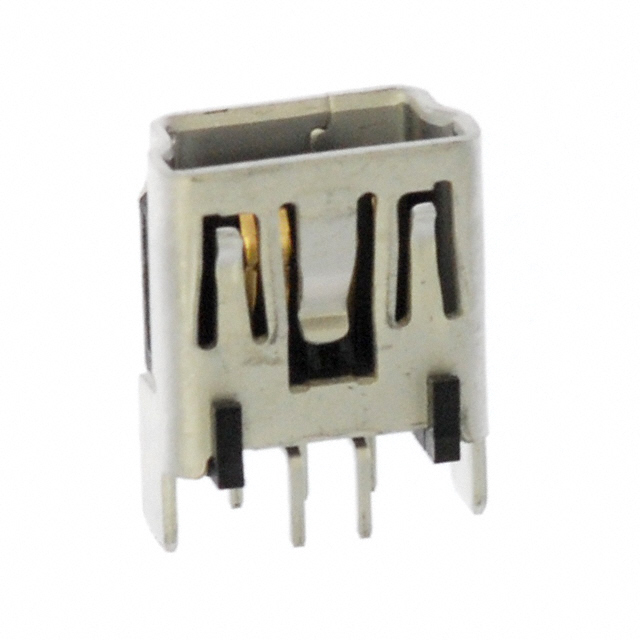

The 5000751517 is a I/O Connector. The application of the 5000751517 includes Wire-to-Board.
Parametrics
5000751517 absolute maximum ratings: (1)Boot Color: N/A; (2)Circuits (Loaded): 5; (3)Color - Resin: Black; (4)Gender: Receptacle; (5)Lock to Mating Part: Yes; (6)Material - Metal: Copper Alloy; (7)Material - Plating Mating: Gold; (8)Material - Plating Termination: Tin; (9)Number of Rows: 1; (10)Orientation: Vertical; (11)PC Tail Length (in): 0.079 In; (12)PC Tail Length (mm): 2.00 mm; (13)PCB Locator: Yes; (14)PCB Retention: Yes; (15)PCB Thickness Recommended (in): 0.031 In; (16)PCB Thickness Recommended (mm): 0.80 mm; (17)Packaging Type: Tray; (18)Panel Mount: No; (19)Pitch - Mating Interface (in): 0.031 In; (20)Pitch - Mating Interface (mm): 0.80 mm; (21)Pitch - Term. Interface (in): 0.031 In; (22)Pitch - Term. Interface (mm): 0.80 mm; (23)Polarized to Mating Part: Yes; (24)Polarized to PCB: Yes; (25)Ports: 1; (26)Surface Mount Compatible (SMC): No; (27)Temperature Range - Operating: -40℃ to +85℃; (28)Termination Interface: Style: Through Hole; (29)Waterproof / Dustproof: No; (30)Wire Size AWG: N/A.
Features
5000751517 features: (1)Product Family: I/O Connectors; (2)Series: 500075; (3)Application: Wire-to-Board; (4)Component Type: Receptacle; (5)MolexKits: Yes; (6)Product Name: USB, USB OTG (On-The-Go); (7)Type: Mini-B.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5000751517 |
|
CONN RECEPT USB 5POS VERT PCB |
Data Sheet |
|
|
||||||||||||||||||||||
