Product Summary

The JCBP-290+ is a Bandpass Filter. The applications of the JCBP-290+ include Harmonic Rejection, Transmitters/Receivers, Military communications.

Parametrics

JCBP-290+ absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power Input: 0.5W.

Features

JCBP-290+ features: (1)Low I.Loss, 0.3 Typ @ Passband; (2)Good VSWR, 1.2:1 Typ @ Pasband; (3)High Stopband Rejection; (4)Aqueous washable.

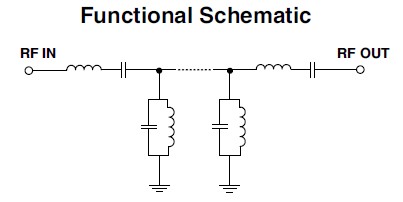

Diagrams
