Product Summary

The LFCN-900D-1+ is a Low Pass Filter. The applications of the LFCN-900D-1+ include harmonic rejection, VHF/UHF transmitters/receivers, lab use.

Parametrics

LFCN-900D-1+ absolute maximum ratings: (1)Operating Temperature: -55℃ to 100℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power Input: 10W max. at 25℃; (4)DC Current Input to Output: 0.5A max. at 25℃.

Features

LFCN-900D-1+ features: (1)excellent power handling, 10W; (2)small size; (3)7 sections; (4)temperature stable; (5)rejection in stopband, 45-50 dB typ; (6)patent pending.

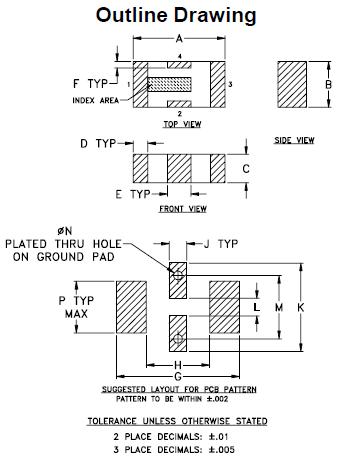

Diagrams
