Product Summary

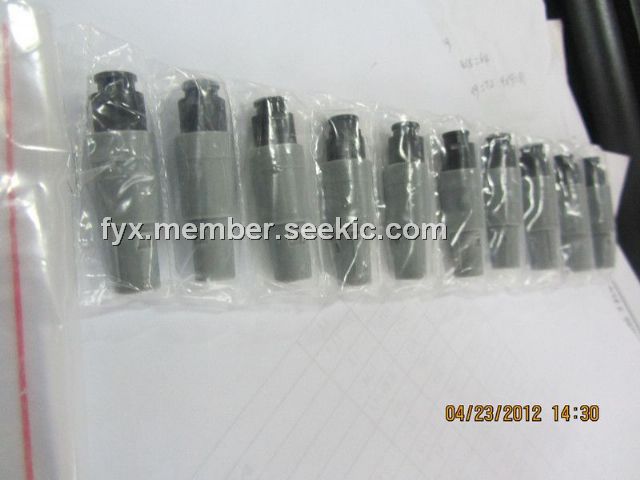

The PAG.M0.6GL.AC52NZ is a Circular Push Pull Connector. The device is especially adapted for applications such as medical electronics and test & measurement. REDEL offers a wide choice of connectors with various contact configurations: multipole contacts, coaxial, fibre optics and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power is available. The PAG.M0.6GL.AC52NZ is available in 3 sizes, depending on the cable diameter. The applications of the PAG.M0.6GL.AC52NZ include Medical electronics, Test and measurement, Industrial electronics, Automotive.
Parametrics
PAG.M0.6GL.AC52NZ absolute maximum ratings: (1)Test voltage (rms): 1.5 kV; (2)Rated voltage (rms): 250V; (3)Temperature rating: -50℃ to +150℃.
Features
PAG.M0.6GL.AC52NZ features: (1)Aesthetically pleasing design; (2)Lightweight; (3)Plastic shell made of PSU or PEI; (4)Extensive sterilisation (over 100 cycles); (5)Excellent electrical safety (touch & scoop proof); (6)Wide choice of colours for easy identification (grey, blue, yellow, black, red, green and white); (7)Large choice of keying to avoid cross mating; (8)Various contact types: solder, crimp, print and elbow print 90o; (9)Disposable models.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PAG.M0.6GL.AC52NZ |
LEMO |
Circular Push Pull Connectors 6P SOLDER STR PLUG CBL COLLET 5.2MM BLK |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
PAG.10.0TZ.ZF |
LEMO |
Circular Push Pull Connectors |
Data Sheet |
|
|
||||||||||||
|
PAG.130.UJ |
LEMO |
Circular Push Pull Connectors STD BACKNUT YELLOW |
Data Sheet |
|
|
||||||||||||
|
PAG.10.0TZ.ZY |
LEMO |
Circular Push Pull Connectors |
Data Sheet |
|
|
||||||||||||
 |
PAG.M0.2GL.AC52J |
LEMO |
Circular Push Pull Connectors 2P SOLDER STR PLUG CBL COLLET 5.2MM YEL |
Data Sheet |
|
|
||||||||||||
|
PAG.M0.2GL.AC52A |
LEMO |
Circular Push Pull Connectors 2P SOLDER STR PLUG CBL COLLET 5.2MM BLU |
Data Sheet |
|
|
||||||||||||
|
PAG.M0.2GL.CC39GZ |
LEMO |
Circular Push Pull Connectors 2P CRIMP STR PLUG CBL COLLET 3.9MM GRY |
Data Sheet |
|
|
||||||||||||
