SIL30C-12SADJ-V

Product Summary

The SIL30C-12SADJ-V is a new high density open-frame non-isolated converter for space sensitive applications. The converter has a wide input range (10.2 to 13.8Vdc) and offers a wide 0.9V to 5V output voltage range with a 30A load. The SIL30C-12SADJ-V offers remote ON/OFF, over-temperature protection and over-current protection as standard. Its current share facility supports parallel operation of multiple SIL30C-12SADJ-V units and the remote sense feature enables the SIL30C-12SADJ-V compensate for voltage drops between the converters output and the load. With full international safety approvals including EN60950 and UL/cUL60950 the SIL30C-12SADJ-V reduces compliance costs and time to market.

Parametrics

SIL30C-12SADJ-V absolute maximum ratings: (1)Voltage adjustability (See Note 1) 0.9V to 5.0V; (2)Output setpoint accuracy Using 1.0% trim resistors ±2.5%; (3)Line regulation Low line to high line ±0.2% max.; (4)Load regulation Full load to min. load ±1.0% max.; (5)Min/max load 0A/30A; (6)Overshoot At turn-on 1.0% max.; (7)Undershoot At turn-off 100mV max.; (8)Ripple and noise (See Note 2) 50mV pk-pk; (9)5Hz to 20MHz 15mV rms; (10)Transient response Deviation 75mV; (11)(See Note 3) 150μs recovery to; (12)within regulation band; (13)Current share Full load ±10%; (14)Input voltage range Nominal 12V 10.2 to 13.8VDC; (15)Input current No load 230mA; (16)Remote OFF 30mA; (17)Input current (max.) (See Note 4) 13.8A max. @ Io max.; (18)and Vin = 10.8V; (19)Input reflected ripple (See Note 2) 150mA (pk-pk).

Features

SIL30C-12SADJ-V features: (1)30A current rating; (2)Input voltage range: 10.2V - 13.8V; (3)Output voltage range: 0.9V - 5.0V; (4)Industry leading value: Cost optimised design; (5)Excellent transient response; (6)Output Voltage adjustability: Pathway for future upgrades; Supports silicon voltage migration; Resulting in reduced design-in and qualification time; (7)Designed in reliability: MTBF of > 3.9 million hrs per Telcordia SR-332.

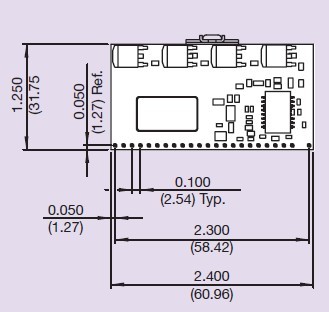

Diagrams
