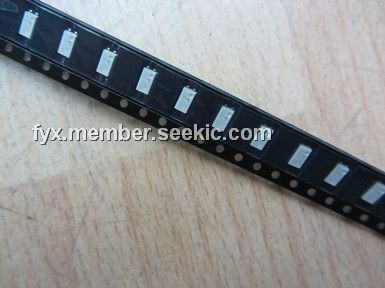

Product Summary

The TLP285 is a very small and thin photocoupler, thus suitable for surface-mount assembly and used in small switching power supply and programmable controller applications. The TLP285 consists of a gallium arsenide infrared emitting diode optically coupled to a phototransistor.

Parametrics

TLP285 absolute maximum ratings: (1)LED, Forward Current, IF: 50 mA; Forward Current Derating, △IF /℃: -0.7 (Ta ≥ 53℃) mA /℃; Pulse Forward Current, IFP: 1 A; Reverse Voltage, VR: 5 V; Junction Temperature, Tj: 125℃; (2)DETECTOR, Collector-Emitter Voltage, VCEO: 80 V; Emitter-Collector Voltage, VECO: 7 V; Collector Curren, IC: 50 mA; Collector Power Dissipation, PC: 150 mW; Collector Power Dissipation Derating(Ta≥25℃), △PC /℃: -1.5 mW /℃; Junction Temperature, Tj: 125℃; (3)Operating Temperature Range, Topr: -55 to 110℃; (4)Storage Temperature Range, Tstg: -55 to 125℃; (5)Lead Soldering Temperature, Tsol: 260℃ (10 s); (6)Total Package Power Dissipation (1 Circuit), PT: 200 mW; (7)Total Package Power Dissipation Derating (Ta ≥ 25℃) (1 Circuit), △PT /℃: -2.0 mW /℃; (8)Isolation Voltage, BVS: 3750 Vrms.

Features

TLP285 features: (1)Collector-Emitter Voltage: 80 V (min); (2)Current Transfer Ratio: 50% (min), Rank GB: 100% (min); (3)Isolation Voltage: 3750 Vrms (min); (4)UL (approved): UL1577, File No. E67349; (5)BSI (approved): BS EN 60065: 2002, BS EN 60950-1: 2006; (6)Option (V4) type: VDE(approved) : EN60747-5-2; Maximum Operating Insuration Voltage: 707 Vpk; Highest Permissible Overvoltage: 6000 Vpk.

Diagrams

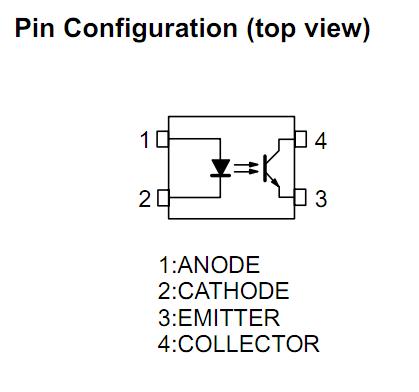

TLP285 pin configuration
