Product Summary

The 856665 is a 580 MHz SAW Filter.

Parametrics

856665 absolute maximum ratings: (1)Operating Temperature Range, T: -40 to +85℃; (2)Storage Temperature Range, Tstg: -40 to +85℃.

Features

856665 features: (1)For WiMAX applications; (2)Useable bandwidth 10.5 MHz; (3)High attenuation; (4)Impedance matching required; (5)Balanced operation; (6)Ceramic Surface Mount Package (SMP); (7)Hermetic; (8)RoHS compliant (2002/95/EC), Pb-free.

Diagrams

856665 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

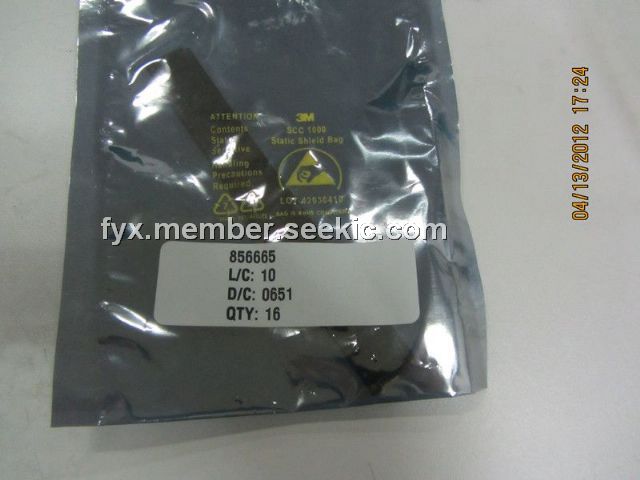

856665
856665
TriQuint Semiconductor
Signal Conditioning 580/10MHz
Data Sheet
0-2250: $5.64
2250-3000: $5.64
