Product Summary

The BFCN-1560+ is a 50Ω surface mount filter. The applications of the BFCN-1560+ are: Harmonic Rejection. Transmitters/Receivers.

Parametrics

BFCN-1560+ absolute maximum ratings: (1)Operating Temperature: -55℃ to 100℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power Input: 1.5W at 25℃.

Features

BFCN-1560+ features: (1)Excellent VSWR, 1.1:1 Typ @ Passband; (2)Small size; (3)Temperature stable; (4)LTCC construction.

Diagrams

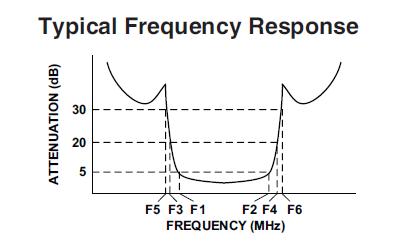

BFCN-1560+ typical frequency response
