Product Summary

The BLM21PG220SN1D is a chip ferrite bead. It comprises ferrite beads in the shape of a chip. This ferrite bead generates a high impedance which at high frequency mainly consists of a resistance element. The BLM21PG220SN1D is effective in circuits without stable ground lines because the BLM series does not need a connection to ground.

Parametrics

BLM21PG220SN1D absolute maximum ratings: (1)Impedance: 22 Ohms; (2)Maximum DC Current: 6000 mAmps; (3)Maximum DC Resistance: 0.01 Ohms; (4)Operating Temperature Range: - 55 C to + 125℃.

Features

BLM21PG220SN1D features: (1)Termination Style: SMD/SMT; (2)Tolerance: 25 %; (3)RoHS: Details; (4)Dimensions: 0.85 mm W × 2 mm L × 1.25 mm H; (5)Package / Case: 0805 (2012 metric); (6)Packaging: Reel.

Diagrams

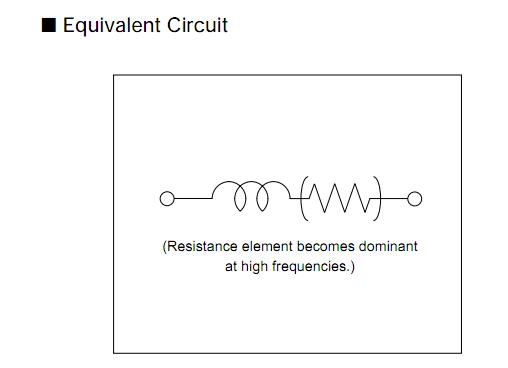

BLM21PG220SN1D equivalent circuit
