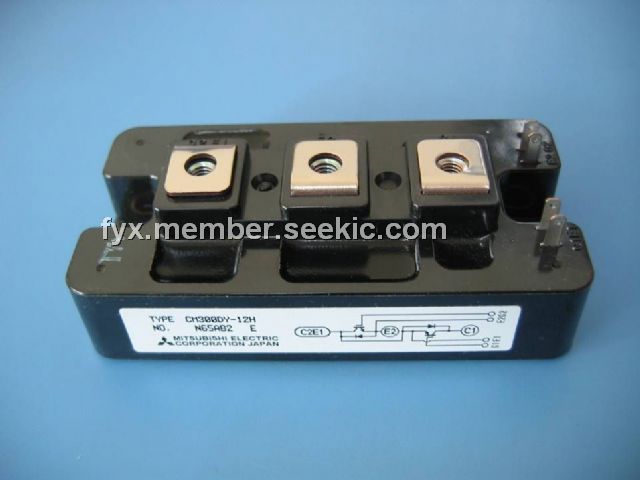

CM300DY-12H

IGBT Module, SMD, ±20 Volts

Rated 5 Rating 5 | reviews | Write a review

Price:: US $214.29~300.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $214.29~300.00

PartNumber:: CM300DY-12H

Brand:: Mitsubishi Electric Semiconductor - MES | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-12

From Other Seller

Part Number:CM300DY-12H
US $214.29 - 300.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

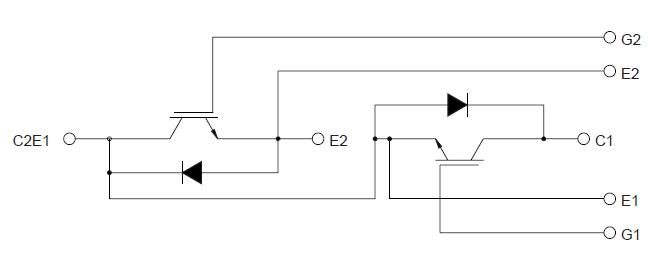

The CM300DY-12H Mitsubishi IGBT Module is designed for use in switching applications. IThe CM300DY-12H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM300DY-12H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies

Parametrics

CM300DY-12H absolute maximum ratings: (1)Junction Temperature: –40 to 150 ℃; (2)Storage Temperature: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT): 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current (TC = 25℃): 300 Amperes; (6)Peak Collector Current: 600* Amperes; (7)Emitter Current** (TC = 25℃): 300 Amperes; (8)Peak Emitter Current**: 600* Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃): 1100 Watts; (10)Mounting Torque, M5 Main Terminal: 1.47 ~ 1.96 N·m; (11)Mounting Torque, M6 Mounting: 1.96 ~ 2.94 N·m; (12)Weight: 270 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.

Features

CM300DY-12H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
