Product Summary

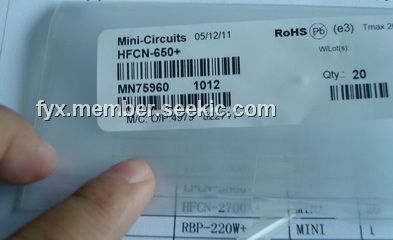

The HFCN-650+ is a High Pass Filter. The applications of the HFCN-650+ include sub-harmonic rejection and dc blocking, transmitters/receivers, lab use.

Parametrics

HFCN-650+ absolute maximum ratings: (1)Operating Temperature: -55℃ to 100℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power Input: 7W max. at 25℃.

Features

HFCN-650+ features: (1)low cost; (2)small size; (3)7 sections; (4)temperature stable; (5)dc block in/out, breakdown voltage, 1kV typ.; (6)excellent power handling, 7W.

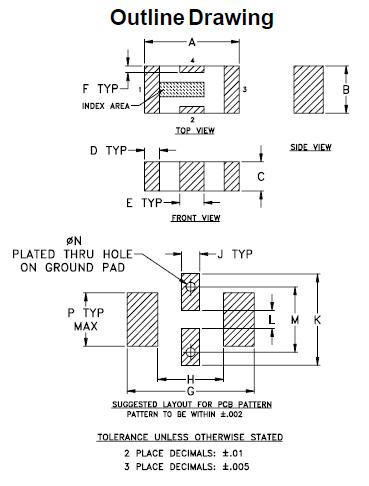

Diagrams
