Product Summary

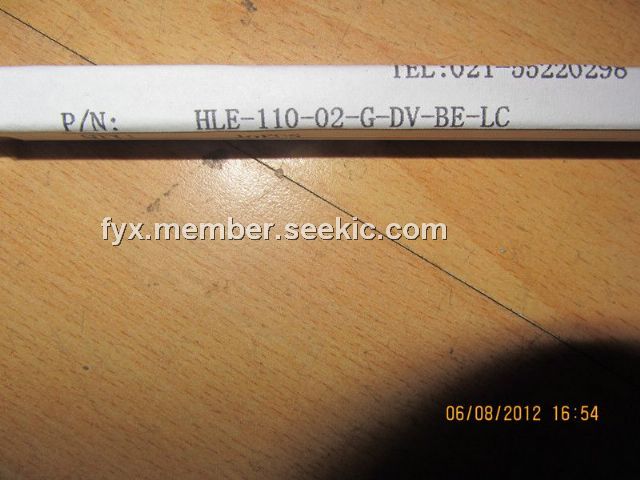

The HLE-110-02-G-DV-BE-LC is a cost-effective reliable socket.
Parametrics
HLE-110-02-G-DV-BE-LC absolute maximum ratings: (1)Current Rating: 2.5A @ 80℃ ambient; (2)Voltage Rating: 400 VAC; (3)Operating Temp Range: -55℃ to +125℃; (4)Insertion Depth: (1,78mm) .070" to (3,43mm) .135", pass-through,; (5)or (2,59mm) .102" min for bottom entry.
Features
HLE-110-02-G-DV-BE-LC features: (1)Type Socket Strip; (2)Pitch 2.54 mm; (3)Number of Rows 2; (4)Number of Contacts 20; (5)Gender SKT; (6)Contact Plating Gold Over Nickel; (7)Termination Method Solder.
