Product Summary

The IRF9640 is the third generation power MOSFET from Vishay which provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF9640 absolute maximum ratings: (1)Drain-Source Voltage VDS: -200 V; (2)Gate-Source Voltage VGS: ± 20 V; (3)Continuous Drain Current VGS at - 10 V TC = 25 ℃, ID: -11A; TC = 100 ℃: - 6.8 A; (4)Pulsed Drain Current IDM: - 44A; (5)Linear Derating Factor: 1.0 W/℃; (6)Single Pulse Avalanche Energy EAS: 700 mJ; (7)Repetitive Avalanche Current IAR: - 11 A; (8)Repetitive Avalanche Energya EAR: 13 mJ; (9)Maximum Power Dissipation TC = 25 ℃ PD: 125 W; (10)Peak Diode Recovery dV/dtc dV/dt: - 5.0 V/ns; (11)Operating Junction and Storage Temperature Range TJ, Tstg: - 55 to + 150℃; (12)Soldering Recommendations (Peak Temperature) for 10 s: 300d ℃; (13)Mounting Torque 6-32 or M3 screw: 10 lbf · in; 1.1 N · m.

Features

IRF9640 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)P-Channel; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead (Pb)-free Available.

Diagrams

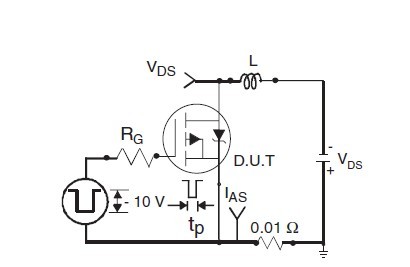

IRF9640 Unclamped Inductive Test Circuit
