Product Summary
The LFCN-225+ is a low pass filter. The applications of this device inlcude harmonic rejection, VHF/UHF transmitters/receivers, RF suppression for DC lines on PCB and anti-aliasing for A/D converter.
Parametrics
LFCN-225+ absolute maximum ratings: (1)Operating Temperature: -55 to 100℃; (2)Storage Temperature: -55 to 100℃; (3)RF Power Inpu: 8.5W max. at 25℃; (4)DC Current Input to Output: 0.5A max. at 25℃.
Features
LFCN-225+ features: (1)excellent power handling, 8.5W; (2)small size; (3)7 sections; (4)temperature stable; (5)patent pending.

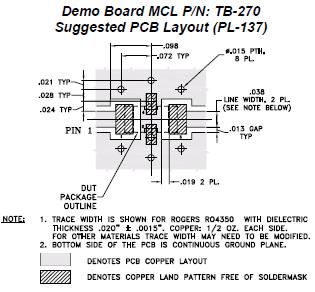

Diagrams
