Product Summary
The LM358MX is a general-purpose operational amplifier. The LM358MX integrates two independent op-amps and phase compensation capacitors on a single chip and feature high-gain, low power consumption, and an operating voltage range of 3V to 32V.
Parametrics
LM358MX absolute maximum ratings: (1)Supply Voltage, V+: +32V; (2)Operating Temperature Range, Topr: 0 to +70℃; (3)Storage Temperature Range, Tstg: -65 to +150℃; (4)Storage Temperature Range, VICM: -0.3 to +32V; (5)Maximum junction Temperature, Tjmax: +150℃.
Features
LM358MX features: (1)Operating temperature range, Commercial Grade LM358 / 324 family : 0℃ to +70℃; (2)Wide operating supply voltage +3[V] to +32[V] (single supply); ±1.5[V] to ±16[V] (dual supply); (3)Low supply current; (4)Common-mode input voltage range including ground; (5)Differential input voltage range equal to maximum rated; (6)Supply voltage; (7)High large signal voltage gain; (8)Wide output voltage range.

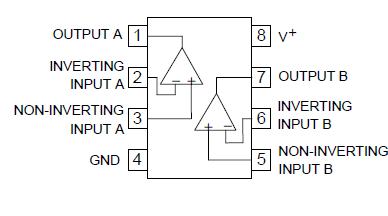

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

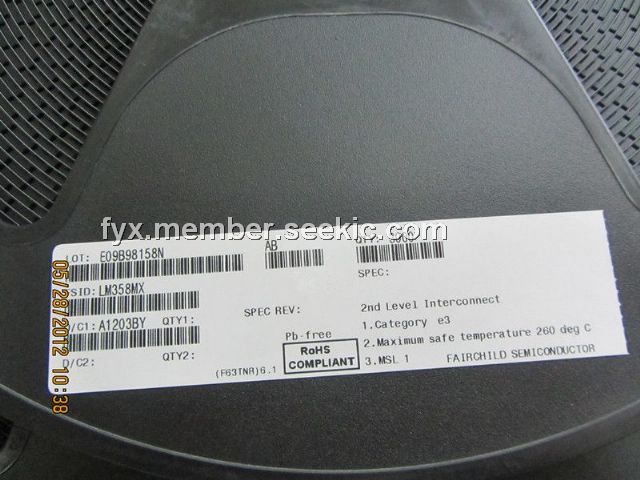

 LM358MX |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps SOP-8 Dual Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM358MX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP |
Data Sheet |
|
|
||||||||||||
