Product Summary
The MAX232CSE is a line driver/receiver. It is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232CSE uses no external components and are recommended for applications where printed circuit board space is critical. The applications of the MAX232CSE include Portable Computers Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.
Parametrics
MAX232CSE absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages: TIN: -0.3V to (VCC - 0.3V), RIN: ±30V, TOUT: ±15V; (5)Output Voltages: TOUT: ±15V, ROUT: -0.3V to (VCC + 0.3V); (6)Driver/Receiver Output Short Circuited to GND: Continuous; (7)Operating Temperature Ranges: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +160℃; (9)Lead Temperature (soldering, 10s): +300℃.
Features
MAX232CSE features: (1)For Low-Voltage, Integrated ESD Applications: MAX3222E/MAX3232E/MAX3237E/MAX3241E/; (2)MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP Package); (3)For Low-Cost Applications: MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

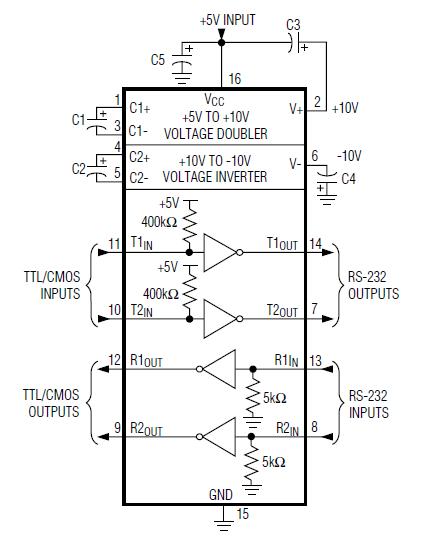

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX232CSE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX232CSE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
|||||||||||||
MAX232CSE+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
|||||||||||||
MAX232CSE-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
