MAX3232E

Product Summary

The MAX3232E is a 3V-powered EIA/TIA-232 and V.28/V.24 communication interface with low power requirements, high datarate capabilities, and enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model. The MAX3232E logic and receiver I/O pins are protected to the above standards, while the transmitter output pins are protected to ±15kV using the Human Body Model. The transceiver MAX3232E has a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a +3.0V to +5.5V supply with a dual charge pump. The charge pump of the MAX3232E requires only four small 0.1μF capacitor for operation from a +3.3V supply. Each device is guaranteed to run at data rates of 250kbps while maintaining RS-232 output levels. The MAX3232E is guaranteed to run at data rates of 250kbps in the normal operating mode and 1Mbps in the MegaBaud. operating mode while maintaining RS-232-compliant output levels.

Parametrics

MAX3232E absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)V+ to GND: -0.3V to +7V; (3)V- to GND: +0.3V to -7V; (4)V+ + |V-|: +13V; (5)Input Voltages T_IN, EN, SHDN, MBAUD to GND: -0.3V to +6V; (6)R_IN to GND: ±25V; (7)Output Voltages T_OUT to GND: ±13.2V; (8)R_OUT, R_OUTB: -0.3V to (VCC + 0.3V); (9)Short-Circuit Duration, T_OUT to GND: Continuous; (10)Continuous Power Dissipation (TA = +70℃) 16-Pin SSOP (derate 7.14mW/℃ above +70℃): 571mW; (11)Operating Temperature Ranges: 0℃ to +70℃; (12)Storage Temperature Range: -65℃ to +150℃; (13)Lead Temperature (soldering, 10s): +300℃.

Features

MAX3232E features: (1)ESD Protection for RS-232 I/O Pins; (2)ESD Protection for All Logic and Receiver I/O Pins; (3)ESD Protection for Transmitter Output Pins; (4)Guaranteed Data Rate; (5)Latchup Free; (6)Low-Power Shutdown with Receivers Active; (7)Flow-Through Pinout; (8)Guaranteed Mouse Driveability; (9)Meets EIA/TIA-232 Specifications Down to 3.0V.

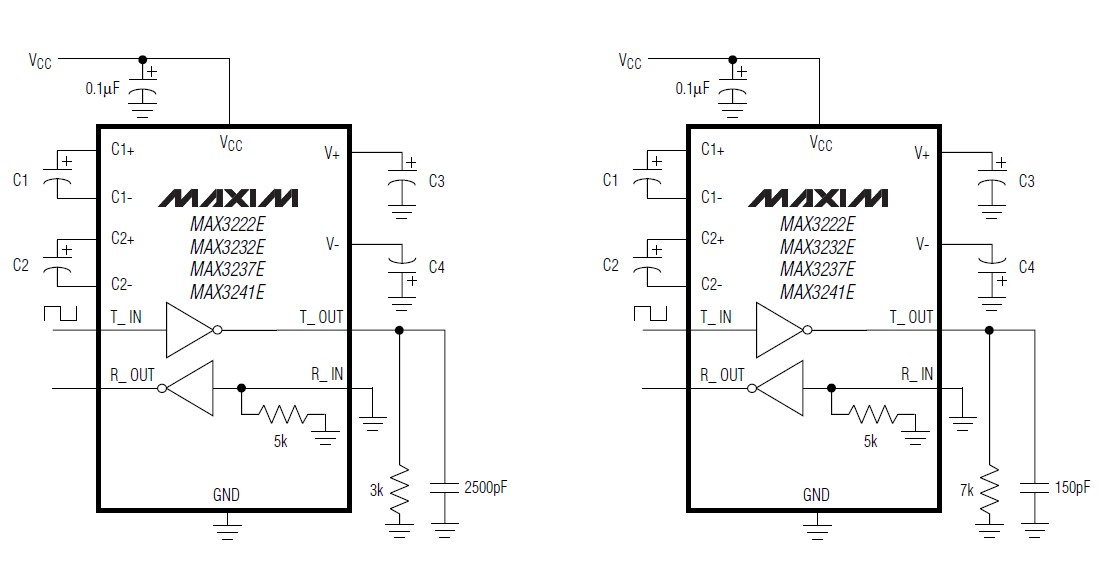

Diagrams
