Product Summary
The MBR2545CTG is a SWITCHMODE Power Rectifier. The MBR2545CTG uses the Schottky Barrier principle with a platinum barrier metal.
Parametrics
MBR2545CTG absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM; (2)Working Peak Reverse Voltage DC Blocking Voltage, VR: 45V; (3)Average Rectified Forward Current (Rated VR, TC = 160℃), IF(AV): 30 A; (4)Peak Repetitive Forward Current, per Diode Leg (Rated VR, Square Wave, 20 kHz, TC = 150℃), IFRM: 30 A; (5)Non.Repetitive Peak Surge Current per Diode Leg (Surge Applied at Rated Load Conditions, Halfwave, Single Phase, 60 Hz) IFSM: 150 A; (6)Peak Repetitive Reverse Surge Current (2.0μs, 1.0 kHz) IRRM: 1.0 A; (7)Storage Temperature Range Tstg .65 to +175 ℃; (8)Operating Junction Temperature (Note 1) TJ: -65 to +175 ℃; (9)Voltage Rate of Change (Rated VR) dv/dt: 10,000 V/μs; (10)ESD Ratings: Machine Model = C, ESD >400V; (11)ESD Ratings: Human Body Model = 3B, ESD>8000V.
Features
MBR2545CTG features: (1)Guardring for Stress Protection; (2)Low Forward Voltage; (3)175℃ Operating Junction Temperature; (4)Pb-Free Packages are Available.

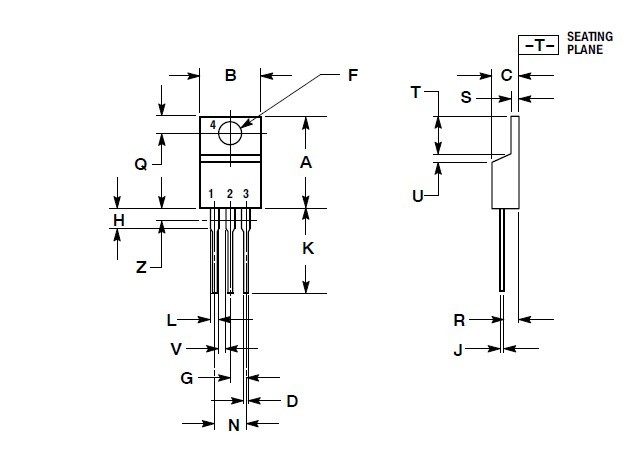

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBR2545CTG |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 30A 45V |
Data Sheet |
|
|
||||||||||||
