Product Summary

The ADE-42MH+ is a Level 13 (LO Power +13 dBm), 5 to 4200 MHz Surface Mount Frequency Mixer. The applications of the ADE-42MH+ are: cellular, PCS, instrumentation, satellite communication.

Parametrics

ADE-42MH+ absolute maximum ratings: (1)Operating Temperature -40℃ to 85℃; (2)Storage Temperature -55℃ to 100℃; (3)RF Power 200mW; (4)IF Current 40mA.

Features

ADE-42MH+ features: (1)low conversion loss, 7.5 dB typ.; (2)low profile package; (3)aqueous washable; (4)protected by U.S. Patent 6,133,525.

Diagrams

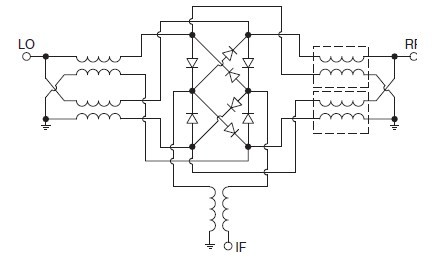

ADE-42MH+ Electrical Schematic
