Product Summary

Power One map130-4001 single and multiple output power supply provides fully regulated outputs with high-peak current capabilities in a compact 4.50" x 8.50" x 2.00" U-channel chassis. Other standard features include autoselect AC input, EMI level B filtering, power fail, thermal shutdown (with warning), remote sense, and metric and SAE mounting inserts. The map130-4001 is designed for use in commercial and industrial environments in temperatures up to 50 degrees C. All products are approved to the latest international regulatory standards, and display the CE Mark.

Parametrics

map130-4001 absolute maximum ratings: (1)Input Voltage- AC Auto-ranging. Low Range: 90 to 132 VAC; High Range 175 to 264 VAC; (2)Input Frequency AC Input: 47 to 63 Hz; (3)Brown out Protection Lowest AC input voltage that regulation is maintained with full rated loads: 90 VAC; (4)Hold-up Time Nominal AC input voltage (115 VAC): 130W load: 40 mS; (5)Input Current 90 VAC, 130W load: 3.3 ARMS; (6)Input Protection Non-user serviceable internally located AC input line fuse.; (7)Inrush Surge Current Internally limited by thermistor. Vin = 264 VAC (one cycle). 25℃. 38 APK; (8)Operating Frequency Switching frequency of main transformer (variable). Range: 16 to 120 kHz; (9)Efficiency Full Load, 115VAC. Varies with distribution of loads among outputs. 71 to 80 %; (10)Minimum Loads: 3.00 Amps; (11)Ripple and Noise Full load, 20MHz bandwidth. See Model Selection Chart; (12)Output Power Continuous output power, all multiple output models. 130 Watts; (13)Peak output power (60s maximum, 10% duty cycle), all multiple output models. 165; (14)Overshoot /Undershoot Output voltage overshoot/undershoot at turn-on / turn-off 1 %; (15)Transient Response Recovery time to within 1% of initial set point due to a 50-100% load change, 4% max. deviation. (Main output only on multi-output units): 500 μS ; (16)Turn-on Delay Time required for initial output voltage stabilization: 2 Sec; (17)Turn-on Rise Time Time required for output voltage to rise from 10% to 90%: 20 mS.

Features

map130-4001 features: (1)Automatic 115/230 Input Voltage Selection; (2)All Outputs Fully Regulated; (3)Remote Sense, Overvoltage Protection, and Overtemperature Protection; (4)Power Fail Signal Included; (5)Greater than 100,000 Hour MTBF; (6)U-Channel Chassis: 8.50" x 4.50" x 2.00" (215.9mm x 114.3mm x 50.8mm); (7)Optional Cover; (8)Metric and SAE Mounting Inserts.

Diagrams

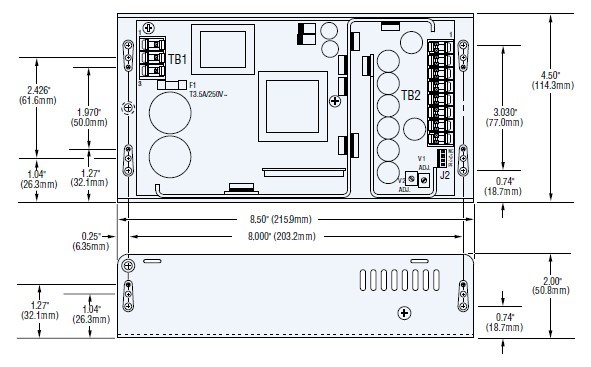

map130-4001 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAP130-4001
MAP130-4001

Power-One

Linear and Switching Power Supplies 130W 5V 20A 24V 3.5A/ -12V 1A

Data Sheet

0-1: $168.30
1-5: $155.68
5-10: $149.79
10-25: $133.44
