Product Summary

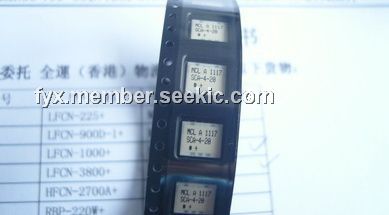

The SCA-4-20+ is a 4 Way-0°, 50Ω, 1000 to 2000 MHz Power Splitter/Combiner. The applications of SCA-4-20+ are PCS and GPS.

Parametrics

SCA-4-20+ absolute maixmum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)Power Input (as a splitter): 5W max.; (4)Internal Dissipation: 0.25W max.

Features

SCA-4-20+ features: (1)wideband, 1000-2000 MHz; (2)high isolation, 20 dB typ.; (3)small surface mount package (0.25x0.3); (4)low profile (0.045); (5)welded leads.

Diagrams

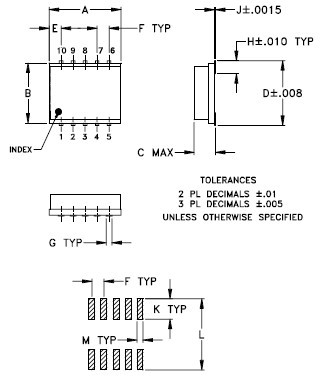

SCA-4-20+ Outline Drawing
