Product Summary

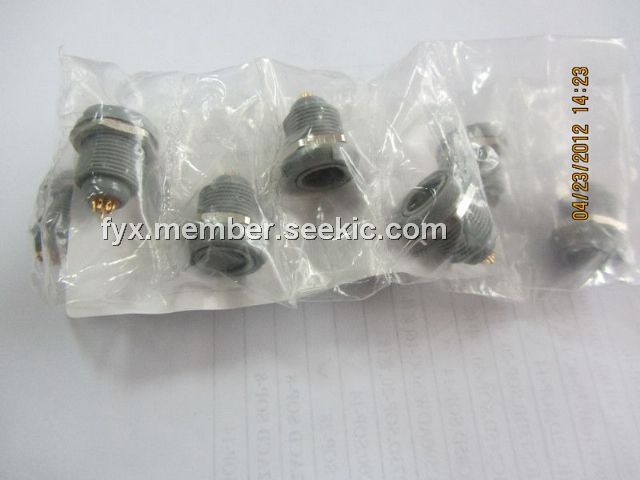

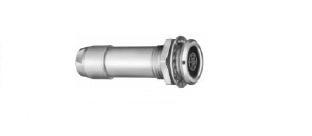

The PKG.M0.8GL.LG is a Circular Push Pull Connector. The device is especially adapted for applications such as medical electronics and test & measurement. REDEL offers a wide choice of connectors with various contact configurations: multipole contacts, coaxial, fibre optics and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power is available. The PKG.M0.8GL.LG is available in 3 sizes, depending on the cable diameter. The applications of the PKG.M0.8GL.LG include Medical electronics, Test and measurement, Industrial electronics, Automotive.
Parametrics
PKG.M0.8GL.LG absolute maximum ratings: (1)Test voltage (rms): 1.5 kV; (2)Rated voltage (rms): 250V; (3)Temperature rating: -50℃ to +150℃.
Features
PKG.M0.8GL.LG features: (1)Aesthetically pleasing design; (2)Lightweight; (3)Plastic shell made of PSU or PEI; (4)Extensive sterilisation (over 100 cycles); (5)Excellent electrical safety (touch & scoop proof); (6)Wide choice of colours for easy identification (grey, blue, yellow, black, red, green and white); (7)Large choice of keying to avoid cross mating; (8)Various contact types: solder, crimp, print and elbow print 90o; (9)Disposable models.
