Product Summary

The SIM-73L+ is a Frequency Mixer. The applications of the SIM-73L+ include satellite up and down converters, defense radar and communications, line of sight links, WIFI, blue tooth, VSAT, ISM.

Parametrics

SIM-73L+ absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power: 50mW.

Features

SIM-73L+ features: (1)wide bandwidth, 2400 to 7000 MHz; (2)low conversion loss, 6.2 dB typ.; (3)excellent IF BW, DC to 3000 MHz; (4)LTCC double balanced mixer; (5)low profi le, 0.08"; (6)protected by US patent 7,027,795; (7)useable as up and down converter.

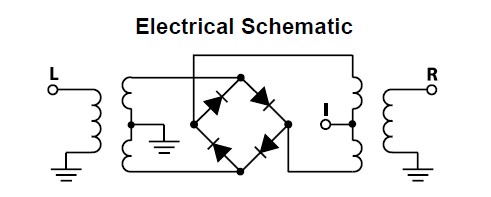

Diagrams
