Product Summary
The SIM-U742MH+ is a Up Converter Frequency Mixer. The applications of SIM-U742MH+ are: instrumentation; wide band receivers.
Parametrics
SIM-U742MH+ absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)IF Power: 50mW.
Features
SIM-U742MH+ features: (1)up converter mixer; (2)low conversion loss, 8.0 dB typ.; (3)high IP3, 20 dBm typ.; (4)ceramic, tiny size; (5)aqueous washable; (6)protected by US Patent, 7,027,795.

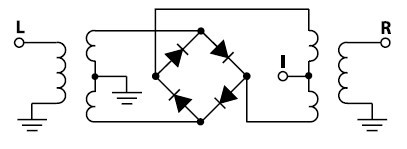

Diagrams
![]() |
