Product Summary
The SM8S33A is a surface mount automotive transient voltage suppressor.
Parametrics
SM8S33A maximum ratings: (1)Steady state power dissipation PD: 8.0 W; (2)Peak forward surge current, 8.3ms single half sine-wave IFSM: 700 A; (3)Typical thermal resistance junction to case RθJC: 0.90 ℃/W; (4)Operating junction and storage temperature range TJ, TSTG: -55 to +175 ℃.
Features
SM8S33A features: (1)Ideally suited for load dump protection; (2)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (3)High temperature stability due to unique oxide passivation and patented PARconstruction; (4)Integrally molded heatsink provides a very low thermal resistance for maximum heat dissipation; (5)Low leakage current at TJ = 175℃; (6)High temperature soldering guaranteed: 260℃ for 10 seconds at terminals; (7)Meets ISO7637-2 surge spec.; (8)Low forward voltage drop.

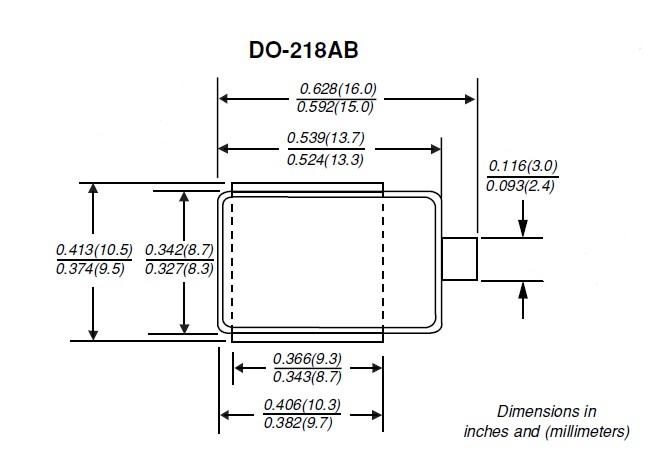

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SM8S33A/2D |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 8W 33V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SM8S33A/2E |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 8W 33V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SM8S33AHE3/2D |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 8.0W 33V 5% Unidir |
Data Sheet |
|
|
||||||||||||||
|
SM8S33A-E3/2D |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 8W 33V Unidirect |
Data Sheet |
|
|
||||||||||||||
 |
SM8S33A-E3/2E |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 8.0W 33V 5% Unidir |
Data Sheet |
|
|
||||||||||||||
|
SM8S33AHE3/2E |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 8.0W 33V 5% Unidir |
Data Sheet |
|
|
||||||||||||||
