Product Summary

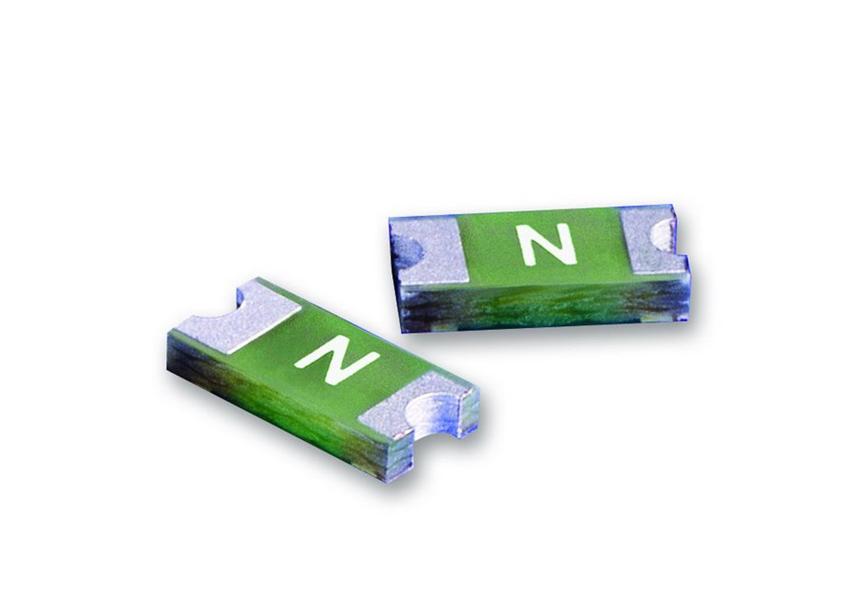

The 04661.25NR is a surface mount fuse.
Parametrics
04661.25NR maximum ratings: (1)Operating Temperature: –55℃ + 90℃; (2)Vibration: Per MIL-STD-202F; (3)Insulation Resistance (After Opening): Greater than 10,000 ohms; (4)Resistance to Soldering Heat: Withstands 60 seconds above; (5)2000C and up to 2600C, maximum; (6)Thermal Shock: Withstands 5 cycles of –55 to 125℃.
Features
04661.25NR features: (1)RoHS compliant and Lead-Free; (2)For new designs of 7 amp please consult 429 series; (3)Product is compatible with lead-free solders and higher temperature profiles; (4)Current ratings available up to 5A; (5)High performance materials provide improved performance in elevated ambient temperature applications; (6)Product is marked on top surface with code to allow amperage rating identification without testing; (7)Low profile for height sensitive applications; (8)Flat top surface for pick-and-place operations; (9)Element covering material is resistant to industry standard cleaning operations; (10)Mounting pad and electrical performance is identical to Littelfuse 429 and 433 Series products; (11)Alloy based element construction provides superior inrush withstand characteristics (I2t) over ceramic or glass based 1206 chip fuse products.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 04661.25NR |
Littelfuse |
Fuses 63V 1.25A VFA Slimline |
Data Sheet |
|
|
||||||||||||
|
04661.25NRHF |
Littelfuse |
Fuses 63V 1.25A FA SLIM |
Data Sheet |
|
|
||||||||||||
