Product Summary

The 2274AI is a dual and quadruple operational amplifier from Texas Instruments. It exhibits rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The 2274AI offers 2 MHz of bandwidth and 3 V/μs of slew rate for higher speed applications. It offers comparable ac performance while having better noise, input offset voltage, and power dissipation than existing CMOS operational amplifiers. The 2274AI has a noise voltage of 9 nV/√Hz, two times lower than competitive solutions.

Parametrics

2274AI absolute maximum ratings: (1)Supply voltage, VDD+: 8 V; (2)Supply voltage, VDD-: 8 V; (3)Differential input voltage, VID: ±16 V; (4)Input voltage range, VI (any input): VDD--0.3 V to VDD+; (5)Input current, II (any input): ±5 mA; (6)Output current, IO: ±50 mA; (7)Total current into VDD+: ±50 mA; (8)Total current out of VDD: ±50 mA; (9)Duration of short-circuit current at (or below) 25℃: unlimited; (10)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃, I, Q suffix: -40℃ to 125℃, M suffix: -55℃ to 125℃; (11)Storage temperature range: -65℃ to 150℃; (12)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, P or PW package: 260℃; (13)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J or U package: 300℃.

Features

2274AI features: (1)Output Swing Includes Both Supply Rails; (2)Low Noise: 9 nV/√Hz Typ at f = 1 kHz; (3)Low Input Bias Current: 1 pA Typ; (4)Fully Specified for Both Single-Supply and Split-Supply Operation; (5)Common-Mode Input Voltage Range Includes Negative Rail; (6)High-Gain Bandwidth: 2.2 MHz Typ; (7)High Slew Rate: 3.6 V/μs Typ; (8)Low Input Offset Voltage 950 μV Max at TA = 25℃; (9)Macromodel Included; (10)Performance Upgrades for the TS272, TS274, TLC272, and TLC274; (11)Available in Q-Temp Automotive HighRel Automotive Applications, Configuration Control / Print Support, Qualification to Automotive Standards.

Diagrams

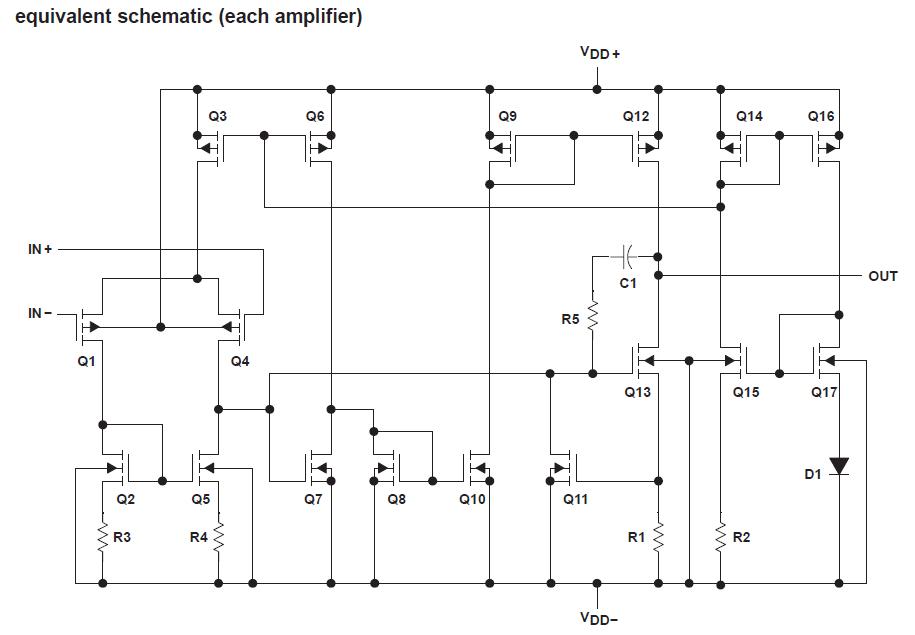

2274AI block diagram
