Product Summary

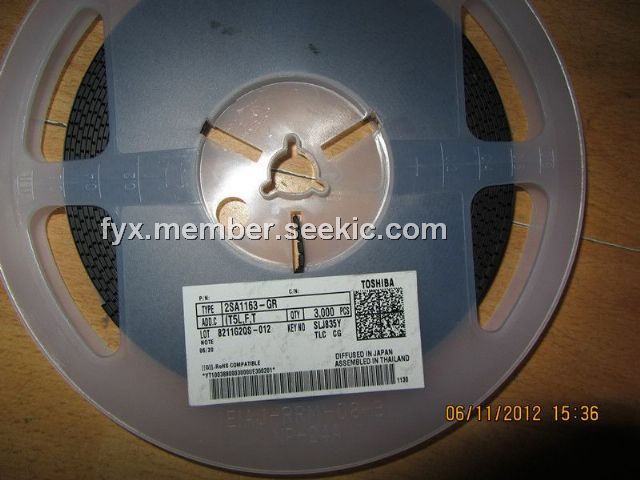

The 2SA1163-GR is an Audio Frequency General Purpose Amplifier.
Parametrics
2SA1163-GR absolute maximum ratings: (1)Collector-base voltage, VCBO: -120 V; (2)Collector-emitter voltage, VCEO: -120 V; (3)Emitter-base voltage, VEBO: -5 V; (4)Collector current, IC: -100 mA; (5)Base current, IB: -20 mA; (6)Collector power dissipation, PC: 150 mW; (7)Junction temperature, Tj: 125℃; (8)Storage temperature range, Tstg: -55 to 125℃.
Features
2SA1163-GR features: (1)High voltage: VCEO = -120 V; (2)Excellent hFE linearity: hFE (IC = -0.1 mA)/hFE (IC = -2 mA) = 0.95 (typ.); (3)High hFE: hFE = 200 to 700; (4)Low noise: NF = 1dB (typ.), 10dB (max); (5)Complementary to 2SC2713; (6)Small package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1163-GRTE85LF |
Toshiba |
Transistors Bipolar (BJT) VCEO -120V Audio IC -100mA IB 10dB |
Data Sheet |
|
|
||||||||||||
