Product Summary

The 36MT120 is a Three Phase Bridge. The 36MT120 is intended for use in general purpose and instrumentation applications.

Parametrics

36MT120 absolute maximum ratings: (1)Maximum junction and storage temperature range, TJ, TStg: - 55 to 150℃; (2)Maximum thermal resistance,junction to case, RthJC: 1.35K/W; (3)Maximum thermal resistance, case to heatsink, RthCS: 0.2k/W; (4)Approximate weight: 20 g; (5)Mounting torque ± 10 %: 2.0 Nm.

Features

36MT120 features: (1)Universal, 3 way terminals: push-on, wrap around or solder; (2)High thermal conductivity package, electrically insulated case; (3)Center hole fixing; (4)Excellent power/volume ratio; (5)UL E300359 approved ; (6)Gold plated terminals solderable using lead (Pb)-free solder; solder alloy Sn/Ag/Cu (SAC305); solder temperature 260 to 275℃; (7)RoHS compliant; (8)Designed and qualified for industrial and consumer level.

Diagrams

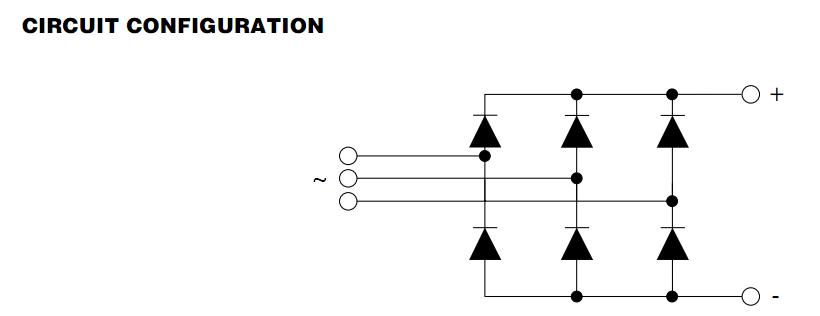

36MT120 circuit configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
36MT120
36MT120

RECT BRIDGE 3-PHA 1200V 35A D-63
Data Sheet
0-1: $11.59
1-10: $10.53
10-100: $8.95
100-250: $8.16
250-500: $7.64
500-1000: $7.00
1000-2500: $6.72
2500-5000: $6.53
5000-10000: $6.32
