Product Summary

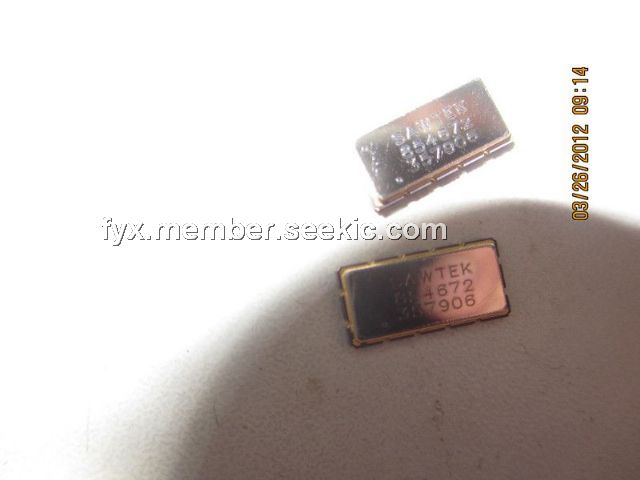

The 854672 is a 70 MHz Bandpass Filter.

Parametrics

854672 absolute maximum ratings: (1)Center Frequency: 69.8 to 70.2MHz; (2)Insertion Loss at Fo: 16.25 to 17dB; (3)2 dB Bandwidth: 22.9 to 23.4MHz; (4)3 dB Bandwidth: 24 to 24.45MHz; (5)40 dB Bandwidth: 29.65 to 30.5HMHz; (6)Passband Ripple: 0.7 to 1dB; (7)Temperature Coefficient: -94ppm/℃; (8)Ambient Temperature: 25℃.

Features

854672 features: (1)Phase Linearity (90% of 3 dB Bandwidth): 8 to 12deg; (2)Group Delay Variation (90% of 3 dB Bandwidth): 65 to 100nsec; (3)Absolute Delay: 1.14μsec; (4)Substrate Material: YZ LiNbO3.

Diagrams

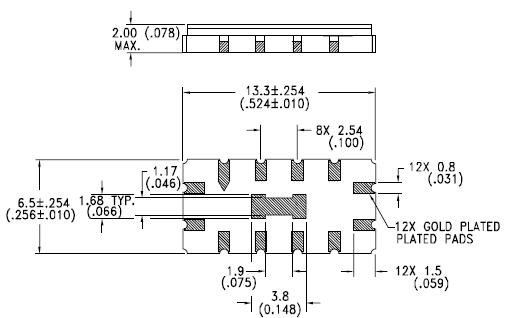

854672 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
854672
854672
TriQuint Semiconductor
Signal Conditioning 70MHz BW 24MHz Filter
Data Sheet
0-1: $23.78
1-25: $21.02
25-100: $18.57
100-250: $15.79
